Daikin Sky Air Active Ducted Air Conditioner ADEAS125A 12.1 kW 42000 BTU

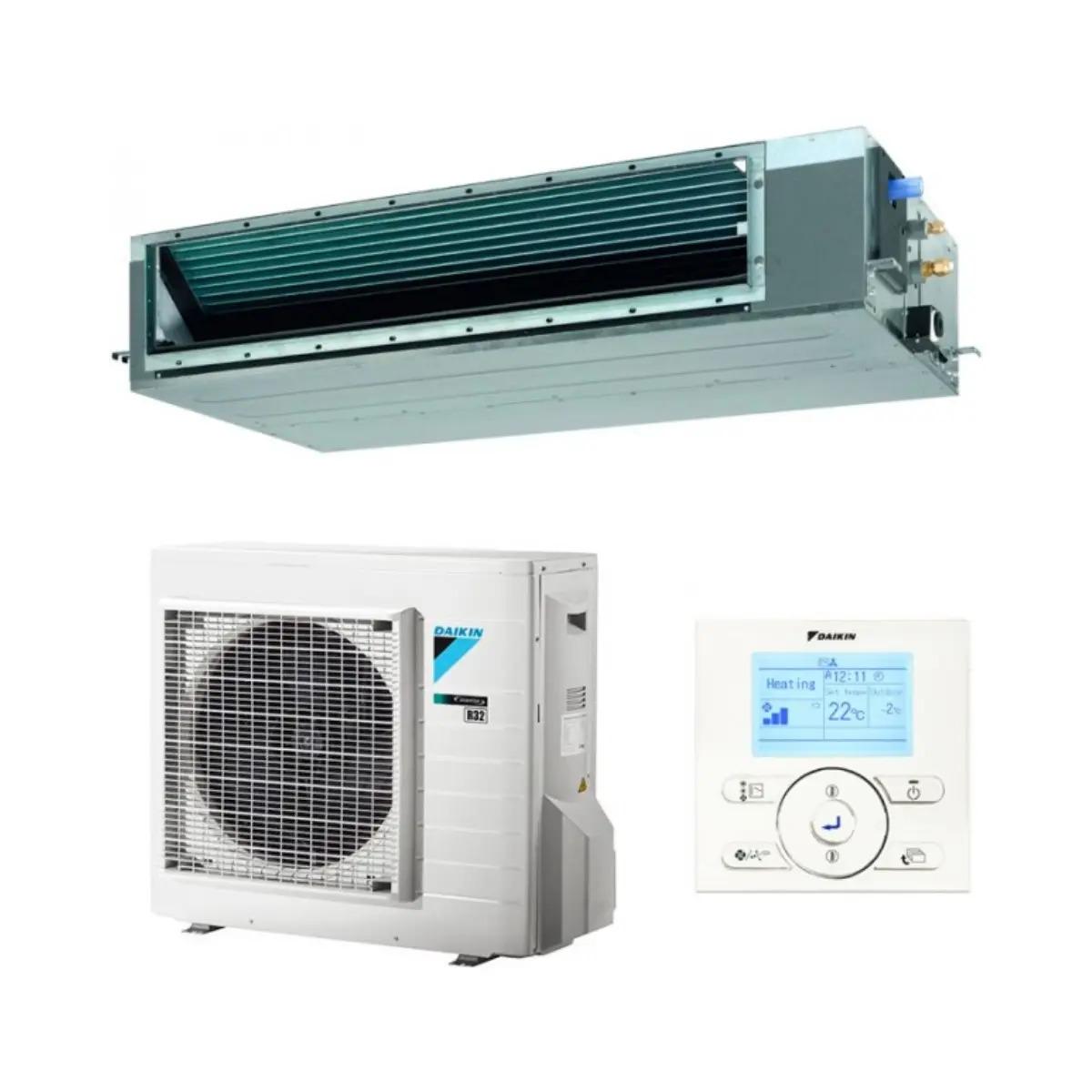

The Daikin Sky Air Active ADEAS125A ducted air conditioning system is a climate control solution designed for large spaces, providing a combination of high performance, energy efficiency, and personalized comfort. This set includes an indoor unit (reference ADEA125A), an outdoor unit (AZAS125MV), and a remote control (BRC1E53A). With a cooling capacity of 12.1 kW (42,000 BTU) and 13.5 kW in heating, it is prepared to operate efficiently in different climatic conditions.

Optimized energy efficiency with R-32 refrigerant

The ADEAS125A uses R-32 refrigerant, which improves energy efficiency and reduces environmental impact. With a SEER of 5.11 and a SCOP of 3.50, this equipment allows for sustainable climate control with lower energy consumption. The annual consumption is estimated at 1,421 kWh for cooling and 2,400 kWh for heating, making it ideal for applications that require intensive system use.

The unit is capable of maintaining a heating capacity of 6.0 kW even at outdoor temperatures of -10 °C, ensuring reliable performance in cold climates.

Compact design and adaptability in installation

The indoor unit stands out for its compact and efficient design, with dimensions of 245 mm high, 1,400 mm wide, and 800 mm deep. This allows for easy installation in false ceilings, even in tight spaces. The adjustable static pressure up to 150 Pa facilitates connection with ducts of various lengths, ensuring uniform air distribution throughout the conditioned space.

The outdoor unit, measuring 990 mm high, 940 mm wide, and 380 mm deep, is ideal for installation on roofs, terraces, or exterior walls. Its ability to support a maximum pipe length of up to 30 meters and a height difference of 30 meters provides great flexibility in system design.

Advanced air flow control

The system incorporates an automatic air flow adjustment function, which measures the static pressure in the ducts and adapts it to the optimal operating level. This ensures homogeneous air distribution throughout the space, eliminating cold or hot spots. Additionally, the remote control allows for manual adjustment of the static pressure to customize air distribution according to specific needs.

The air flow rate is 34 m³/min in both cooling and heating, with three available fan speeds, ensuring precise air flow adjustment based on user preferences.

Quiet operation for large environments

The Daikin Sky Air Active ADEAS125A air conditioning system is designed to operate quietly, maintaining acoustic comfort in busy spaces. The indoor unit emits only 36 dBA in cooling mode, while the outdoor unit reaches a maximum of 53 dBA. This makes it a suitable option for offices, shops, and restaurants where silence is essential.

Technical specifications

Below is a detailed summary of the specifications for the ADEAS125A model:

• Nominal capacity:
  • Cooling: 12.1 kW (42,000 BTU)
  • Heating: 13.5 kW
• Nominal electrical consumption:
  • Cooling: 5,260 W
  • Heating: 2,970 W
• Energy efficiency: SEER 5.11 / SCOP 3.50
• Refrigerant: R-32 (2.60 kg, equivalent to 1.76 tons of CO₂)
• Pipe connections:
  • Liquid: Ø 9.5 mm (3/8”)
  • Gas: Ø 15.9 mm (5/8”)
• Dimensions:
  • Indoor unit: 245 mm (height) x 1,400 mm (width) x 800 mm (depth)
  • Outdoor unit: 990 mm (height) x 940 mm (width) x 380 mm (depth)
• Weight:
  • Indoor unit: 46 kg
  • Outdoor unit: 79 kg
• Available static pressure: 50 Pa (adjustable up to 150 Pa)
• Air flow rate: 34 m³/min
• Fan speeds: 3 settings
• Sound pressure:
  • Indoor unit: 36 dBA
  • Outdoor unit: 57 dBA

Control options and accessories

This model is compatible with advanced control solutions. The Onecta App control module (reference BRP069C81), available for €210, allows management of the unit from a smartphone. The Madoka remote control (reference BRC1H52W/S/K), available in three colors, is also offered for €215.

Recommended applications

The ADEAS125A air conditioning system is ideal for large spaces, such as shops, offices, or commercial premises, that require efficient and flexible climate control. Its compact design, advanced control options, and low noise level make it a reliable and adaptable solution for a wide variety of environments.

With this equipment, Daikin reaffirms its commitment to innovation, sustainability, and comfort, offering an optimal solution for large installations that require precise climate control.
