Daikin Sky Air Active Ducted Air Conditioner ADEAS35A 3.4 kW 12000 BTU

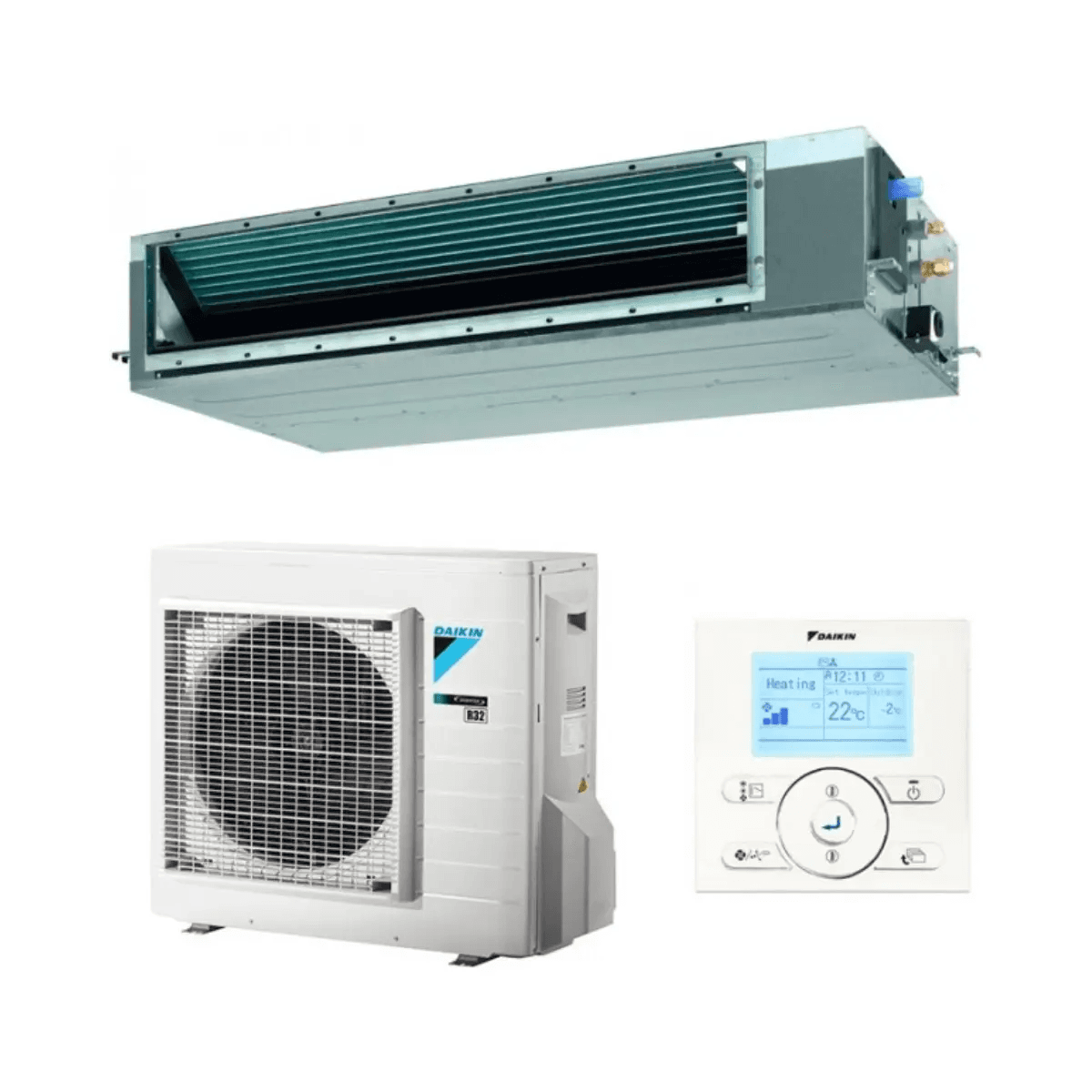

The Daikin Sky Air Active ADEAS35A ducted air conditioning system is a highly efficient climate control option, designed to meet comfort needs in commercial environments, offices, or residences. This system, with a cooling capacity of 3.4 kW (12,000 BTU) and a heating capacity of 4.0 kW, consists of three fundamental elements: the indoor unit (reference ADEA35A), the outdoor unit (ARXM35A9), and a remote control (BRC1E53A). Its superior performance, versatility in installation, and advanced features make it a complete and reliable solution.

Maximum energy efficiency with R-32 refrigerant

The Sky Air Active range has been developed to operate with R-32 refrigerant, a fluid that offers improved efficiency compared to alternatives like R-410A. With a seasonal energy efficiency ratio (SEER) of 5.75 and a seasonal coefficient of performance (SCOP) of 4.00, the ADEAS35A model ensures optimized energy consumption, reducing annual operating costs. According to tests under standard conditions, the seasonal consumption is 196 kWh for cooling and 995 kWh for heating.

Additionally, the system is designed to maintain high performance in moderately cold climates, with a nominal heating capacity of 2.90 kW even at outdoor temperatures of -10 °C, making it ideal for year-round use.

Compact, efficient, and adaptive design

The indoor unit of the ADEAS35A stands out for its compact design, measuring only 245 mm in height, 700 mm in width, and 800 mm in depth. This compact format facilitates installation in false ceilings with space limitations. Additionally, the model incorporates adjustable static pressure that can reach up to 150 Pa, allowing the use of ducts of varying lengths. This feature enhances installation flexibility and facilitates adaptation to different architectural configurations.
The outdoor unit has also been designed with ease of installation in mind, allowing it to be placed on roofs, terraces, or walls, with a maximum pipe length of up to 20 meters and a height difference between units of up to 15 meters.

Uniform air distribution and flow control

One of the main benefits of this model is its ability to automatically adjust the airflow according to environmental conditions. Thanks to an internal measurement system, the air conditioning adjusts the flow to the nominal level, simplifying startup and ensuring uniform comfort in all climate-controlled areas.

Additionally, the system allows for static pressure adjustment from the remote control, giving the installer or end user the ability to optimize air distribution according to the specific needs of each space.

The three-speed fan technology also contributes to precise airflow regulation, with a flow rate of 15 m³/min in both cooling and heating modes. This ensures constant thermal balance throughout the year.

Quiet performance and comfort in continuous use

The Daikin Sky Air Active air conditioning stands out for its low noise levels. The indoor unit reaches only 25 dBA in its quietest setting, making it an ideal solution for spaces where acoustic comfort is essential, such as offices, shops, and residential areas. The maximum sound pressure level of the indoor unit is 35 dBA, while the outdoor unit reaches a level of 49 dBA in cooling mode.

Detailed technical specifications

Below is a complete summary of the technical specifications of the ADEAS35A system:

• Nominal capacity:
  • Cooling: 3.4 kW (equivalent to 12,000 BTU)
  • Heating: 4.0 kW
• Nominal electrical consumption:
  • Cooling: 900 W
  • Heating: 1,010 W
• Refrigerant: R-32 (charge of 0.76 kg, equivalent to 0.52 tons of CO₂)
• Pipe connections:
  • Liquid: Ø 6.4 mm (1/4”)
  • Gas: Ø 9.5 mm (3/8”)
• Dimensions of the indoor unit:
  • Height: 245 mm
  • Width: 700 mm
  • Depth: 800 mm
  • Weight: 28 kg
• Dimensions of the outdoor unit:
  • Height: 552 mm
  • Width: 840 mm
  • Depth: 350 mm
  • Weight: 32 kg
• Static pressure: Nominal 30 Pa, adjustable up to 150 Pa
• Fan speeds: 3 settings
• Sound power level:
  • Indoor unit: maximum 60 dBA
  • Outdoor unit: 61 dBA

Versatility and control options

For efficient control tailored to user needs, this air conditioning system is compatible with optional accessories. Among them is the Onecta App control (reference BRP069C81), which allows management of the system from a smartphone for an additional cost of €210. The Madoka remote control (reference BRC1H52W/S/K) is also available in various color options, priced at €215.

Recommended applications

The Daikin Sky Air Active ADEAS35A air conditioning is perfect for medium-sized spaces such as shops, offices, restaurants, and homes. Its combination of energy efficiency, thermal comfort, and installation flexibility makes it an ideal solution for those seeking a reliable and high-performance climate control unit.

With this model, Daikin reaffirms its commitment to energy savings and comfort in all types of installations, offering solutions tailored to the needs of the current market.
