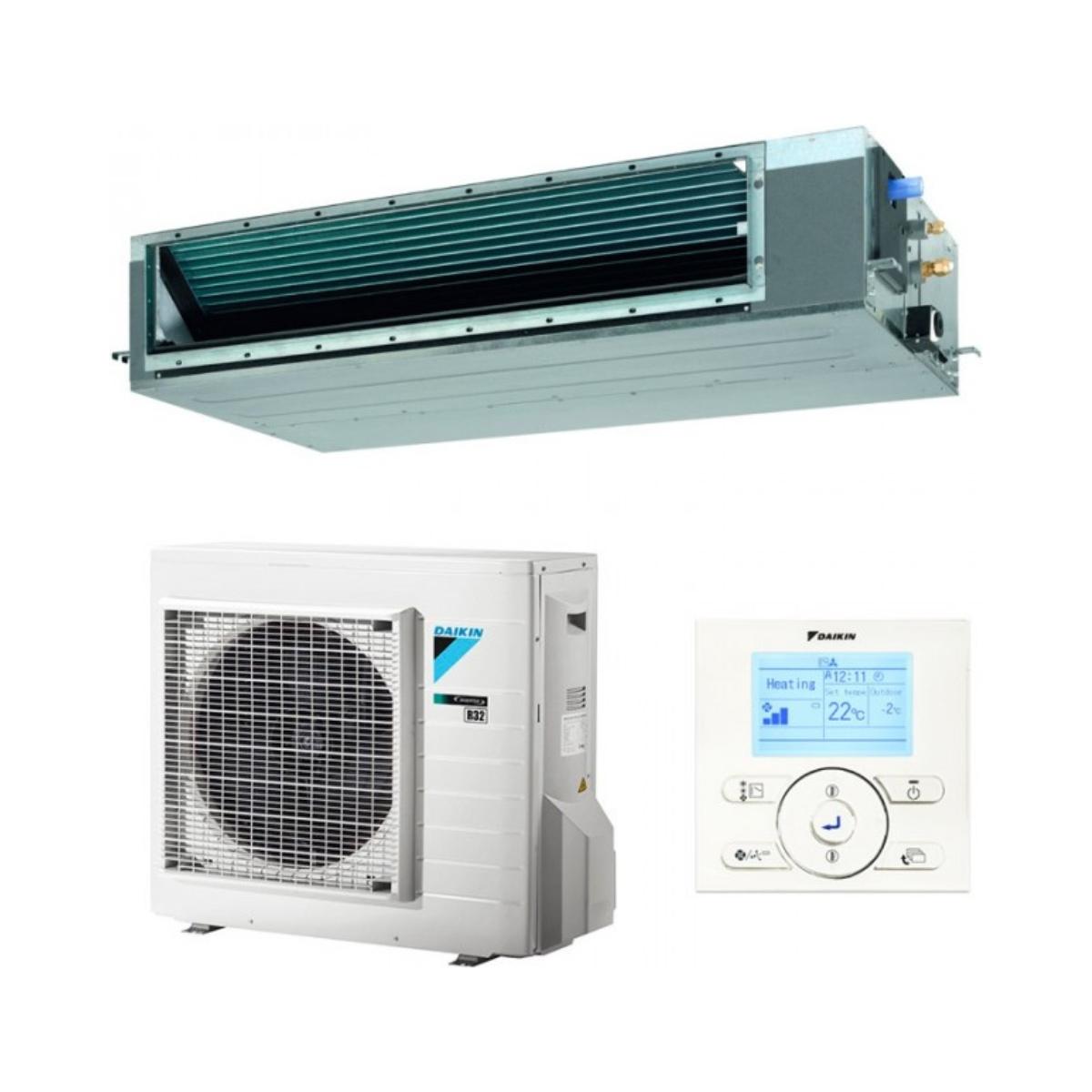

Daikin Sky Air Active Ducted Air Conditioner ADEAS50A 5.0 kW 18000 BTU

The Daikin Sky Air Active ADEAS50A ducted air conditioner is an advanced solution for the climate control of commercial spaces, offices, and residences. With a nominal capacity of 5.0 kW (18,000 BTU) in cooling and 5.5 kW in heating, this system ensures optimal thermal comfort throughout the year. The set includes an indoor unit (ADEA50A), an outdoor unit (ARXM50A8), and a remote control (BRC1E53A), designed to facilitate the control and management of the equipment.

Advanced energy efficiency with R-32 refrigerant

The ADEAS50A is optimized to operate with R-32 refrigerant, which improves energy efficiency while reducing environmental impact. With a SEER of 5.65 and a SCOP of 4.00, the system ensures low energy consumption, translating into long-term savings. The estimated annual consumption is 280 kWh in cooling and 1,520 kWh in heating.

The seasonal performance is particularly noteworthy, offering a heating capacity of 4.6 kW even at outdoor temperatures of -10 ºC, ideal for moderately cold climates. This guarantees consistent performance in any weather condition, enhancing the habitability of the space.

Compact and adaptable design

The indoor unit of the ADEAS50A is extremely compact, measuring only 245 mm in height, 700 mm in width, and 800 mm in depth, allowing for easy installation in tight spaces. The adjustable static pressure, reaching up to 150 Pa, facilitates integration with duct systems of various lengths. This makes the equipment suitable for different installation configurations, adapting to the needs of stores, offices, and homes.

The outdoor unit, measuring 734 mm high, 954 mm wide, and 401 mm deep, is designed to be installed in multiple locations, such as rooftops, terraces, or walls, with a maximum piping length of 30 meters and a height difference between units of up to 20 meters. These features provide flexibility to installers, allowing for customized solutions based on the available space.

Efficient distribution and air flow control

This air conditioner incorporates an automatic air flow adjustment system, which measures static pressure and adapts the air flow to the nominal level. This ensures uniform climate distribution throughout the space, eliminating cold or hot spots and improving comfort. Additionally, the user or installer can modify the static pressure from the remote control to adjust air distribution according to the characteristics of the environment.

The air flow is 15 m³/min in both cooling and heating, with three available fan speeds. This versatility in flow control allows for maintaining a constant and pleasant temperature in all areas of the space.

Quiet performance

The ADEAS50A model has been designed to operate quietly, making it perfect for environments where acoustic comfort is essential. The sound level of the indoor unit is 35 dBA, while the outdoor unit reaches a maximum of 48 dBA in cooling. These figures ensure that the equipment operates without causing disturbances, which is especially important in offices, stores, or rest areas.

Technical specifications

Below are the main technical features of the ADEAS50A system:

• Nominal capacity:
  • Cooling: 5.0 kW (18,000 BTU)
  • Heating: 5.5 kW
• Nominal electrical consumption:
  • Cooling: 1,530 W
  • Heating: 1,470 W
• Refrigerant: R-32 (charge of 1.15 kg, equivalent to 0.78 tons of CO₂)
• Piping connections:
  • Liquid: Ø 6.4 mm (1/4”)
  • Gas: Ø 12.7 mm (1/2”)
• Dimensions:
  • Indoor unit: 245 mm (height) x 700 mm (width) x 800 mm (depth)
  • Outdoor unit: 734 mm (height) x 954 mm (width) x 401 mm (depth)
• Weight:
  • Indoor unit: 28 kg
  • Outdoor unit: 49 kg
• Static pressure: Nominal 30 Pa, adjustable up to 150 Pa
• Air flow: 15 m³/min
• Fan speeds: 3 settings
• Sound power level:
  • Indoor unit: 60 dBA
  • Outdoor unit: 62 dBA

Optional accessories and smart control

The system is compatible with accessories that enhance the user experience. The Onecta app control (reference BRP069C81) can be purchased for an additional cost of €210, allowing management of the equipment from mobile devices. The Madoka remote control (reference BRC1H52W/S/K) is also available in different colors, priced at €215.

Recommended applications

The Daikin Sky Air Active ADEAS50A air conditioner is ideal for applications in offices, shops, restaurants, or residences that require an efficient, quiet, and adaptable system. Its compact design, along with the ability to adjust static pressure and air flow, offers a high-performance solution for climate control in medium-sized spaces.

With this equipment, Daikin reinforces its commitment to innovation, comfort, and energy efficiency, providing a reliable and sustainable solution for demanding environments.
