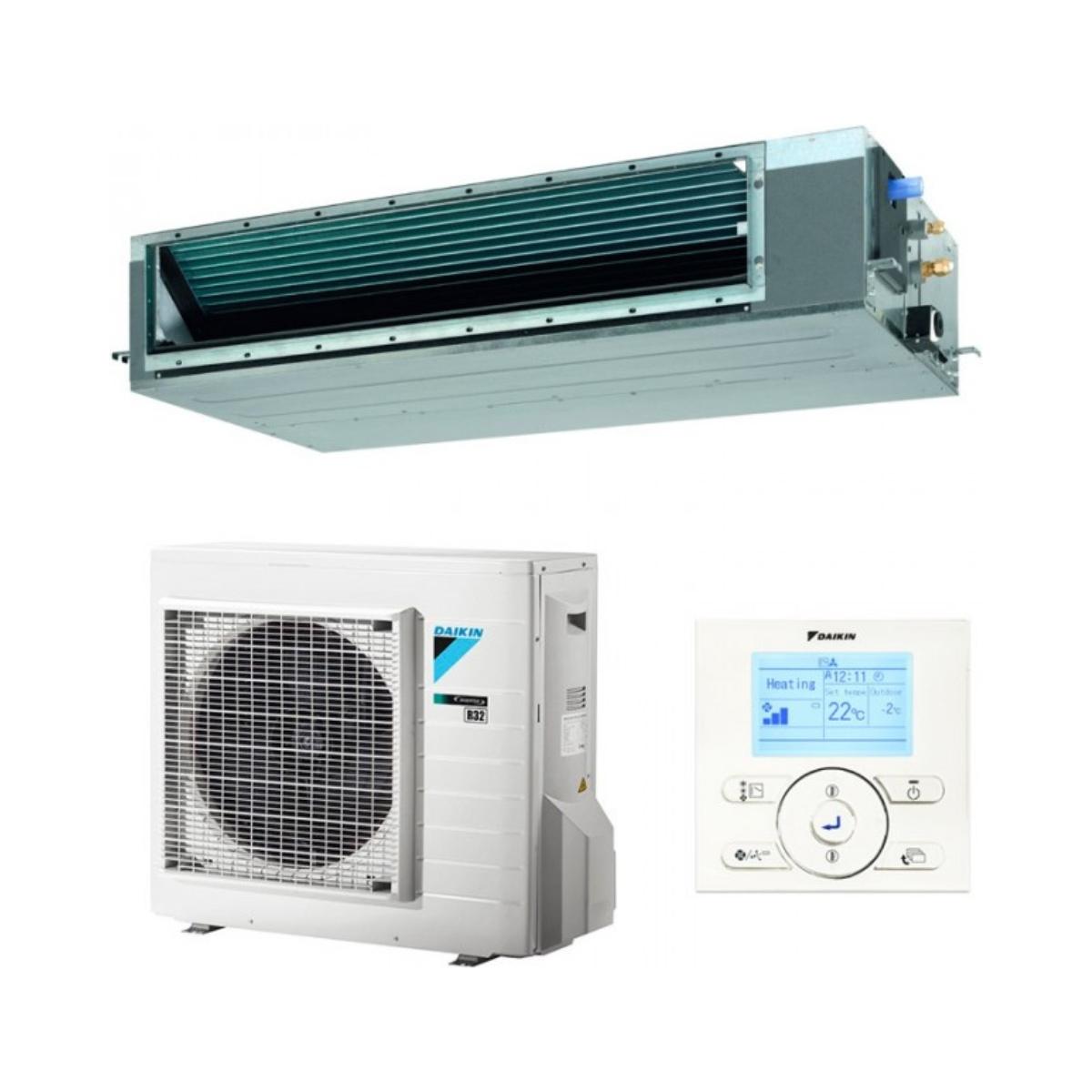

Daikin Sky Air Active Ducted Air Conditioner ADEAS60A 5.7 kW 20000 BTU

The Daikin Sky Air Active ADEAS60A ducted air conditioning system is designed to provide efficient and personalized climate control in medium-sized spaces, such as offices, shops, restaurants, or homes. With a cooling capacity of 5.7 kW (20,000 BTU) and 7.0 kW in heating, this unit ensures optimal performance even under intensive working conditions. The set includes an indoor unit (reference ADEA60A), an outdoor unit (ARXM60A), and a remote control (BRC1E53A), providing a complete and easy-to-manage solution.

Maximum energy efficiency with R-32 technology

This model from the Sky Air Active range is designed to operate with R-32 refrigerant, a more efficient and sustainable alternative to traditional R-410A. With a SEER of 5.74 and a SCOP of 4.00, the unit offers outstanding seasonal performance, resulting in lower electricity consumption and energy savings. The estimated annual consumption is 339 kWh for cooling and 1,610 kWh for heating, ensuring economical climate control throughout the year.

Additionally, the unit maintains a nominal heating capacity of 4.6 kW in adverse outdoor conditions, such as temperatures down to -10 °C, making it ideal for climates with cold winters.

Compact design adaptable to any installation

The indoor unit of the ADEAS60A model has optimized dimensions for easy installation, measuring only 245 mm high, 1,000 mm wide, and 800 mm deep. Its design allows it to be integrated into false ceilings with space limitations. The adjustable static pressure of up to 150 Pa allows for the connection of ducts of various lengths, ensuring uniform air distribution throughout the space.

On the other hand, the outdoor unit, measuring 734 mm high, 954 mm wide, and 401 mm deep, is ideal for installations on rooftops, terraces, or exterior walls. This unit can support a maximum pipe length of 30 meters and a height difference between the units of up to 20 meters, providing great flexibility in system design.

Uniform air distribution and flow control

The system incorporates an automatic air flow adjustment function that measures the static pressure in the ducts and adapts the flow to optimal values, ensuring constant comfort at all times. Additionally, it is possible to manually adjust the static pressure from the remote control to customize air distribution according to the needs of the space.

With an air flow of 15 m³/min in both cooling and heating, the unit has three fan speed settings, allowing for precise regulation of air flow according to user preferences. This feature is especially important to ensure balanced thermal comfort in areas with different occupancy levels.

Quiet operation for work and rest environments

The Daikin Sky Air Active ADEAS60A air conditioning unit has been designed for quiet operation. The indoor unit reaches a sound level of only 30 dBA, while the outdoor unit maintains a maximum of 48 dBA in cooling mode. This allows for installation in spaces where silence is a priority, such as offices or rest areas.

Complete technical specifications

Below are the main technical features of the ADEAS60A model:

• Nominal capacity:
  • Cooling: 5.7 kW (20,000 BTU)
  • Heating: 7.0 kW
• Nominal electrical consumption:
  • Cooling: 1,660 W
  • Heating: 1,930 W
• Energy efficiency: SEER 5.74 / SCOP 4.00
• Refrigerant: R-32 (1.15 kg, equivalent to 0.78 tons of CO₂)
• Pipe connections:
  • Liquid: Ø 6.4 mm (1/4”)
  • Gas: Ø 12.7 mm (1/2”)
• Dimensions:
  • Indoor unit: 245 mm (height) x 1,000 mm (width) x 800 mm (depth)
  • Outdoor unit: 734 mm (height) x 954 mm (width) x 401 mm (depth)
• Weight:
  • Indoor unit: 28 kg
  • Outdoor unit: 49 kg
• Static pressure: Adjustable between 30 Pa and 150 Pa
• Air flow: 15 m³/min
• Fan speeds: 3 settings
• Sound pressure:
  • Indoor unit: 30 dBA
  • Outdoor unit: 48 dBA

Control options and accessories

The unit is compatible with optional accessories that allow for advanced control. For example, the Onecta App control (reference BRP069C81), available for €210, offers the ability to manage the system from a smartphone. The Madoka remote control (reference BRC1H52W/S/K) is also available in three color options for a price of €215.

Recommended applications

The Daikin Sky Air Active ADEAS60A air conditioning unit is ideal for a wide variety of applications in medium-sized spaces. Its compact design, efficient performance, and low noise level make it a standout option for offices, shops, restaurants, and residences.

With this system, Daikin reinforces its commitment to comfort, sustainability, and innovation, offering a reliable and versatile solution for installations that require precise climate control.
