Daikin Sky Air Active Ducted Air Conditioner ADEAS71A 6.8 kW 24000 BTU

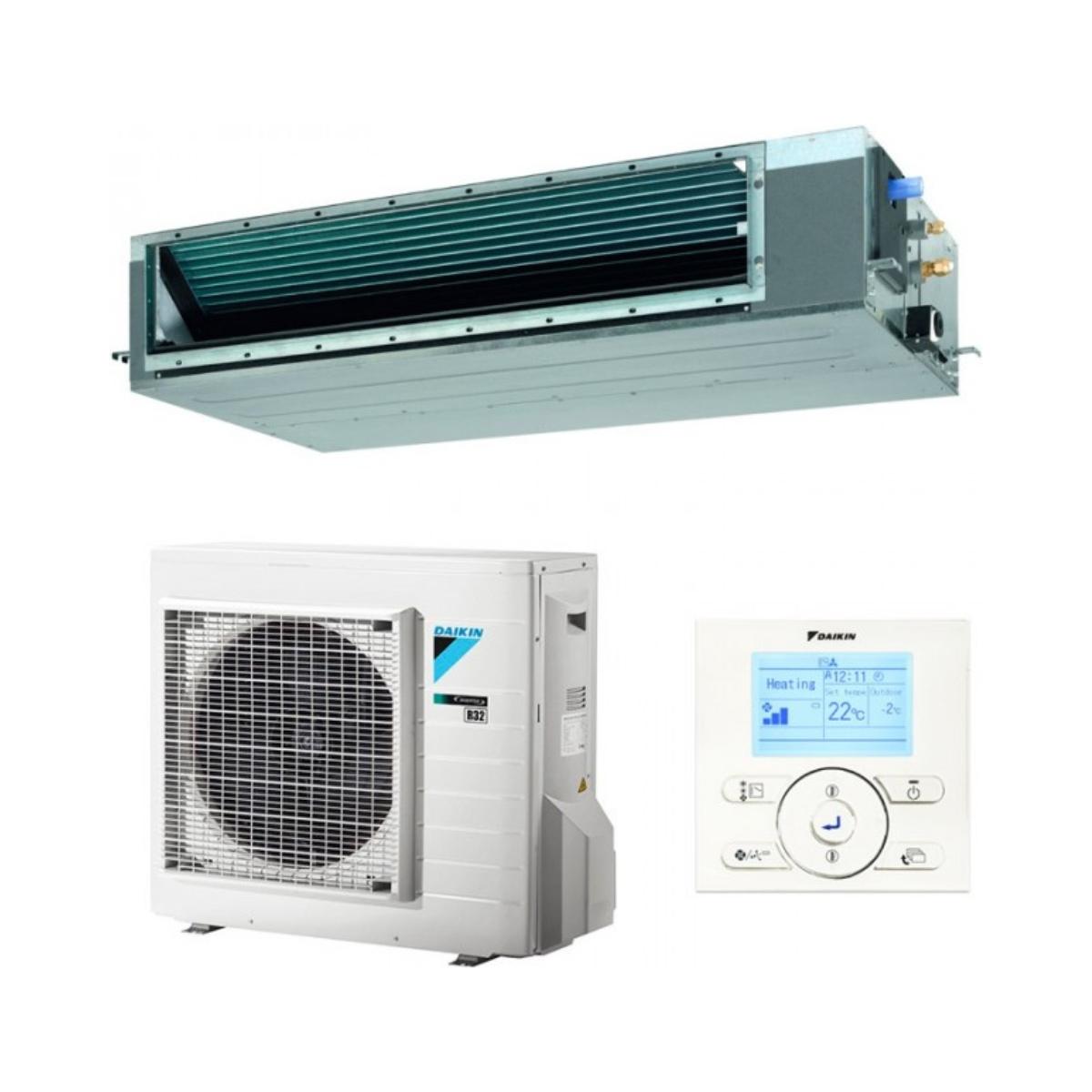

The Daikin Sky Air Active ADEAS71A ducted air conditioner is designed to provide efficient, quiet, and high-performance climate control in medium-sized commercial or residential spaces. This system includes an indoor unit (reference ADEA71A), an outdoor unit (ARXM71A), and a remote control (BRC1E53A). Its cooling capacity is 6.8 kW (24,000 BTU), while in heating mode it reaches 7.5 kW, ensuring thermal comfort throughout the year.

Maximum energy efficiency with R-32 technology

This model operates with R-32 refrigerant, a fluid that maximizes energy efficiency and reduces environmental impact. With a SEER of 5.35 and a SCOP of 3.80, the ADEAS71A air conditioner can maintain constant climate control with reduced electricity consumption. The annual consumption is estimated at 430 kWh for cooling and 1,657 kWh for heating, minimizing long-term operating costs.

The unit's performance is maintained even in intense cold conditions, offering a heating capacity of 6.0 kW at outdoor temperatures of -10 °C.

Compact design adaptable to different configurations

The indoor unit features an ultra-compact design, with dimensions of 245 mm high, 1,000 mm wide, and 800 mm deep. This allows for installation in tight spaces, such as false ceilings. The adjustable static pressure up to 150 Pa facilitates connection with ducts of various lengths, ensuring uniform air distribution throughout the space.

The outdoor unit has also been designed to adapt to different locations, with dimensions of 734 mm high, 954 mm wide, and 401 mm deep. It can be installed on rooftops, terraces, or exterior walls, supporting a maximum pipe length of 30 meters and a height difference of up to 20 meters.

Efficient air distribution and automatic adjustment

This model features an automatic air flow adjustment system that measures the static pressure in the ducts and adapts it to the optimal level, ensuring constant comfort. Additionally, the remote control allows for manual adjustment of the static pressure to customize air distribution according to the needs of the space.

The air flow is 18 m³/min in both cooling and heating modes, with three available fan speeds. This adjustability ensures thermal balance in different areas, enhancing user experience.

Quiet operation

The Daikin Sky Air Active ADEAS71A has been designed to operate quietly, ideal for environments where acoustic comfort is a priority. The indoor unit emits only 30 dBA of sound pressure in its quietest setting, while the outdoor unit reaches a maximum of 52 dBA in cooling mode. These figures ensure discreet operation, suitable for offices, shops, and residential areas.

Technical specifications

Below are the main technical characteristics of the ADEAS71A air conditioner:

• Nominal capacity:
  • Cooling: 6.8 kW (24,000 BTU)
  • Heating: 7.5 kW
• Nominal electrical consumption:
  • Cooling: 2,150 W
  • Heating: 2,310 W
• Energy efficiency: SEER 5.35 / SCOP 3.80
• Refrigerant: R-32 (1.15 kg, equivalent to 0.78 tons of CO₂)
• Pipe connections:
  • Liquid: Ø 9.5 mm (3/8”)
  • Gas: Ø 15.9 mm (5/8”)
• Dimensions:
  • Indoor unit: 245 mm (height) x 1,000 mm (width) x 800 mm (depth)
  • Outdoor unit: 734 mm (height) x 954 mm (width) x 401 mm (depth)
• Weight:
  • Indoor unit: 35 kg
  • Outdoor unit: 49 kg
• Static pressure: Adjustable between 30 and 150 Pa
• Air flow: 18 m³/min
• Fan speeds: 3 settings
• Sound pressure:
  • Indoor unit: 30 dBA
  • Outdoor unit: 52 dBA

Accessories and smart control

The system is compatible with advanced control options, such as the Onecta App control module (reference BRP069C81), which allows management of the unit from a smartphone for €210. The Madoka remote control (reference BRC1H52W/S/K) is also available in three colors, with an additional price of €215.

Recommended applications

This model is ideal for applications in offices, shops, restaurants, or residences that require efficient and flexible climate control. Its compact design, high energy efficiency, and low noise level make it an optimal solution for spaces where comfort is a priority.

With this air conditioner, Daikin reaffirms its commitment to sustainability, energy savings, and technological innovation, offering a reliable and adaptable solution for a wide variety of environments.
