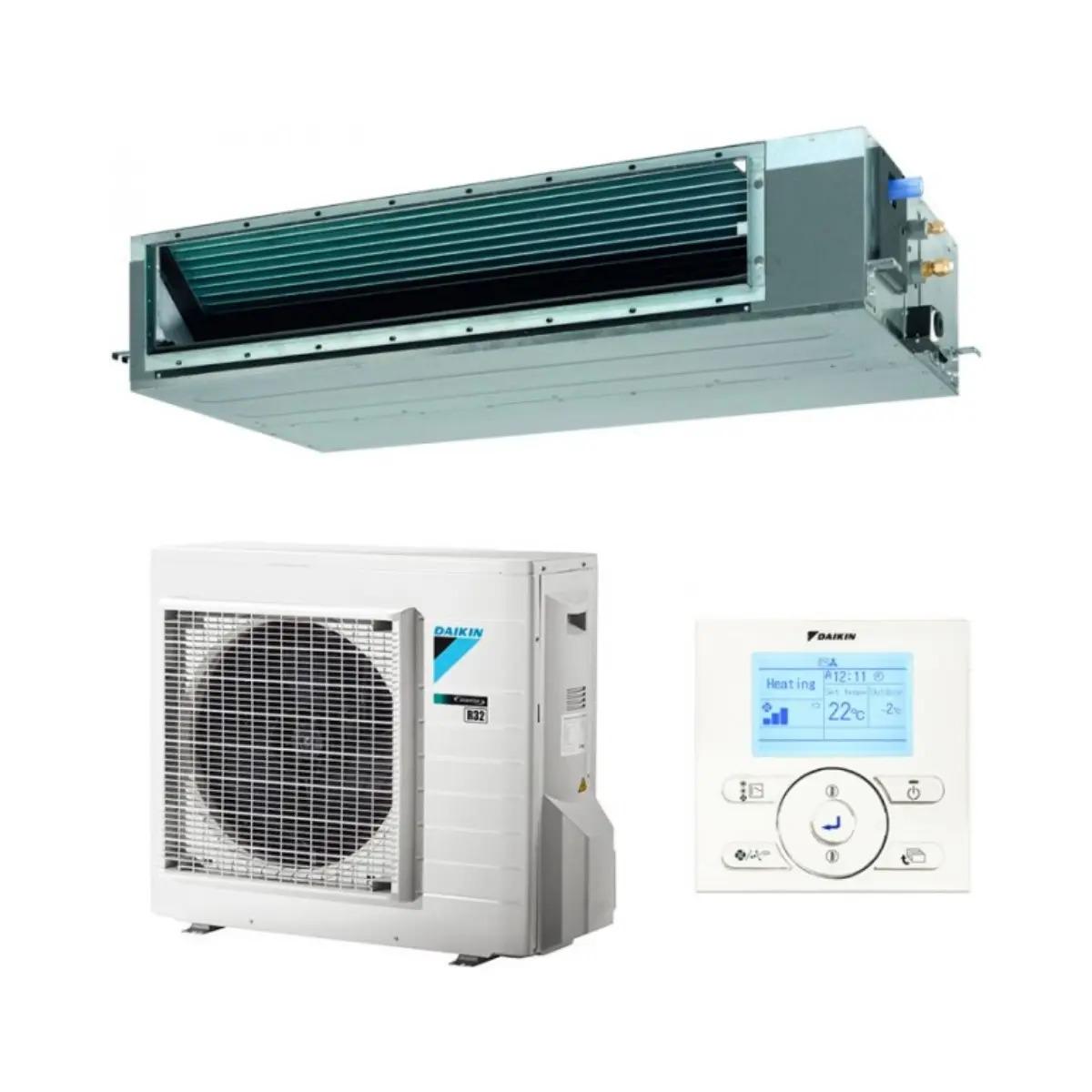

Daikin Sky Air Active Ducted Air Conditioner ADEAS100A 9.5 kW 32000 BTU

The Daikin Sky Air Active ADEAS100A ducted air conditioning system is a high-performance climate control solution designed to meet comfort needs in large spaces such as offices, stores, or restaurants. This system includes an indoor unit (reference ADEA100A), an outdoor unit (AZAS100MV), and a remote control (BRC1E53A). With a cooling capacity of 9.5 kW (32,000 BTU) and 10.8 kW in heating, it guarantees efficient and reliable performance throughout the year.

Maximum efficiency with R-32 refrigerant

The ADEAS100A model uses R-32 refrigerant, known for its higher energy efficiency and lower environmental impact compared to other refrigerants. With a SEER of 5.55 and a SCOP of 3.81, the unit ensures optimized energy consumption, translating into long-term savings on operating costs. The annual energy consumption is estimated at 600 kWh for cooling and 2,205 kWh for heating.

Its ability to maintain stable performance in extreme cold conditions, with 6.0 kW of heating power at temperatures as low as -10 °C, makes it ideal for climates with moderate to severe winters.

Compact design adaptable to various configurations

The indoor unit of the ADEAS100A is designed to maximize installation flexibility, with dimensions of 245 mm high, 1,400 mm wide, and 800 mm deep. This compact design allows for installation in false ceilings, even in tight spaces. The adjustable static pressure up to 150 Pa facilitates the use of ducts of varying lengths, ensuring efficient air distribution throughout the space.

Meanwhile, the outdoor unit, measuring 990 mm high, 940 mm wide, and 380 mm deep, is suitable for installations on roofs, terraces, or walls. This unit supports a maximum pipe length of up to 30 meters and a height difference between units of 30 meters, providing great flexibility for various installation configurations.

Air distribution and automatic flow control

The system incorporates an advanced automatic air flow adjustment that measures the static pressure in the ducts and adapts it to optimal operating levels. This ensures uniform air distribution throughout the conditioned space, enhancing thermal comfort. Additionally, the remote control allows for manual adjustment of static pressure to tailor the air flow to the specific needs of the environment.

The air flow in cooling and heating is 29 m³/min, with three available fan speeds, allowing for precise flow adjustment according to user preferences. This flow control is crucial for maintaining a comfortable and homogeneous environment throughout the space.

Quiet operation for busy environments

The Daikin Sky Air Active ADEAS100A has been optimized for quiet operation. The indoor unit generates only 34 dBA in standard operation, while the outdoor unit reaches a maximum of 53 dBA in cooling. This makes the equipment ideal for environments where noise must be kept to a minimum, such as offices or commercial establishments.

Detailed technical specifications

Below are the main technical features of the ADEAS100A system:

• Nominal capacity:
  • Cooling: 9.5 kW (32,000 BTU)
  • Heating: 10.8 kW
• Nominal electrical consumption:
  • Cooling: 2,970 W
  • Heating: 2,150 W
• Energy efficiency: SEER 5.55 / SCOP 3.81
• Refrigerant: R-32 (2.60 kg, equivalent to 1.76 tons of CO₂)
• Pipe connections:
  • Liquid: Ø 9.5 mm (3/8”)
  • Gas: Ø 15.9 mm (5/8”)
• Dimensions:
  • Indoor unit: 245 mm (height) x 1,400 mm (width) x 800 mm (depth)
  • Outdoor unit: 990 mm (height) x 940 mm (width) x 380 mm (depth)
• Weight:
  • Indoor unit: 46 kg
  • Outdoor unit: 72 kg
• Available static pressure: 40-150 Pa
• Air flow: 29 m³/min
• Fan speeds: 3 settings
• Sound power level:
  • Indoor unit: 58 dBA
  • Outdoor unit: 70 dBA

Accessories and smart control options

For added convenience, the unit is compatible with various optional accessories. The Onecta App control (reference BRP069C81) allows management of the air conditioning from a smartphone for an additional price of €210. The Madoka remote control (reference BRC1H52W/S/K) is also available in three colors for €215.

Recommended applications

This air conditioning system is ideal for medium to large spaces, such as offices, stores, and restaurants that require an efficient, quiet, and flexible climate control solution. Its compact design, high efficiency, and advanced control options make this model an excellent choice for those seeking a balance between performance and comfort.

With this equipment, Daikin reaffirms its commitment to sustainability and innovation, offering a reliable, versatile, and efficient solution for a wide range of environments.
