Mitsubishi Electric MSEZ-35VA Ducted Air Conditioner 3.5 kW 12000 BTU

The Mitsubishi Electric MSEZ-35VA ducted air conditioner combines efficiency, quiet operation, and discretion in a compact format, perfect for both residential and commercial installations.

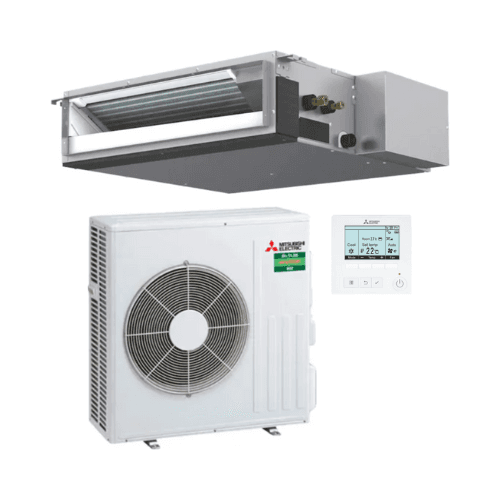

The set includes the indoor unit SEZ-M35DA2, the outdoor unit SUZ-M35VA, and the wall-mounted control PAR-40MAA.
Thanks to its inverter technology and ultra-slim design, it ensures stable performance, low energy consumption, and seamless integration into false ceilings.

Technical Specifications

• Cooling capacity: 3.5 kW (12,000 BTU)
• Heating capacity: 4.0 kW
• SEER: 6.6
• SCOP: 4.2
• EER: 3.33
• COP: 4.10
• Refrigerant: R32
• Airflow: up to 600 m³/h
• Indoor unit noise level: 23–33 dB(A)
• Refrigerant connections: 1/4” (Ø6.35 mm) – 3/8” (Ø9.52 mm)
• Power supply: single-phase 230 V / 50 Hz

Set Composition

• 1 × Indoor unit SEZ-M35DA2
• 1 × Outdoor unit SUZ-M35VA
• 1 × Control panel PAR-40MAA

Installation and Maintenance

The unit is supplied without additional installation materials.
The indoor unit SEZ-M35DA2 has a total height of just 200 mm, making it easy to install in low false ceilings.
It features adjustable static pressure and front access to filters and internal components, allowing for quick and easy maintenance.

Dimensions and Weight

• Indoor unit (SEZ-M35DA2): 200 × 900 × 700 mm – 20 kg
• Outdoor unit (SUZ-M35VA): 550 × 800 × 285 mm – 37 kg

Recommended Applications

Ideal for homes, offices, or rooms between 25 and 40 m² where efficient and quiet ducted climate control is needed, with advanced wall control and discreet design.
