Mitsubishi Electric Ducted Air Conditioner MGPEZ-50VJA 5.0 kW 17000 BTU

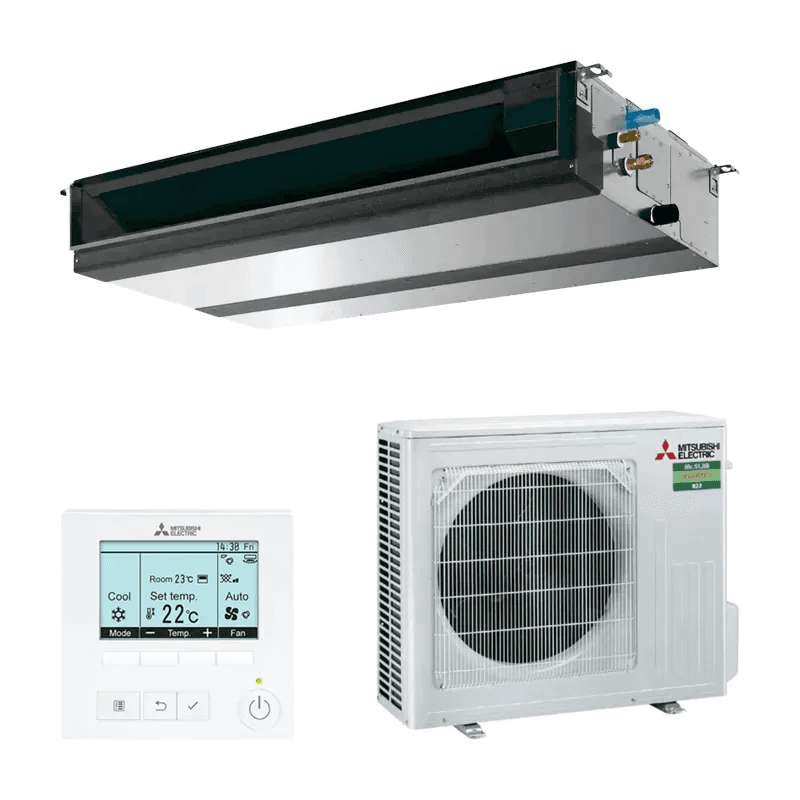

The Mitsubishi Electric MGPEZ-50VJA is a ducted air conditioning unit that combines energy efficiency, compact design, and quiet operation. Its configuration includes the indoor unit PEAD-SM50JA, the outdoor unit SUZ-SM50VA, and the remote control PAR-41MAA, offering a complete solution for climate control with maximum comfort and optimized consumption.

Compact and Adaptable Design

This model features an ultra-low height of 250 mm, making it easy to install in ceilings with limited space. Additionally, its static pressure is adjustable in five levels (35/50/70/100/150 Pa), allowing adaptation to different duct designs without losing efficiency. Its configurable air return system (rear or bottom) provides greater installation flexibility.

Energy Efficiency and High Performance

The MGPEZ-50VJA offers a nominal capacity of 5.0 kW in cooling (min. 1.7 kW - max. 5.6 kW) and 6.0 kW in heating (min. 1.5 kW - max. 7.2 kW), ensuring optimal performance in any season. Its energy coefficients optimize electrical consumption:

• SEER: 5.3
• SCOP: 3.8
• EER/COP: 3.21 / 3.70

These values ensure efficient climate control with lower energy consumption, promoting sustainability and reducing operational costs.

Quiet Operation and Absolute Comfort

The optimized design of the PEAD series has significantly reduced noise levels, reaching values of 26 dB at low speed, making it one of the quietest options on the market. It also includes a built-in drain pump, which facilitates the evacuation of condensation water and simplifies the installation process.

Advanced Control and Smart Connectivity

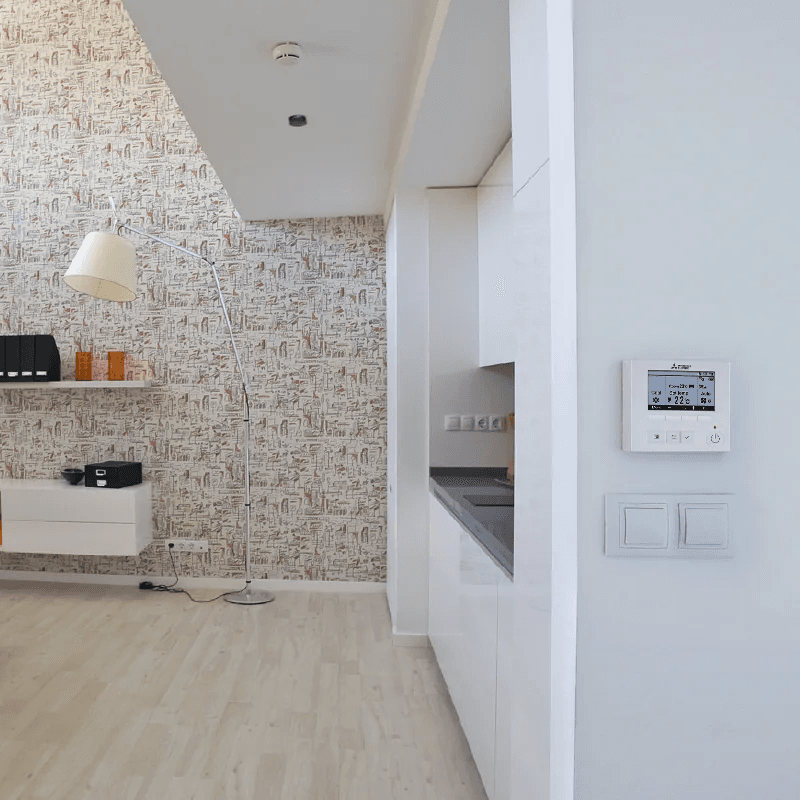

This unit is compatible with MELCloud (requires optional module MAC-567IF), allowing remote management from a smartphone, tablet, or PC. It also includes the remote control PAR-41MAA, enabling precise temperature adjustments and advanced programming. For simpler configuration, it is compatible with the simplified remote control PAC-YT52CRA.

Key Technical Specifications

• Airflow of indoor unit: 12 / 14.5 / 17 m³/min (Low/Medium/High)
• Adjustable static pressure: 35 / 50 / 70 / 100 / 150 Pa
• Indoor sound level: 26 / 31 / 35 dB(A) (Low/Medium/High)
• Dimensions of indoor unit: 250 x 900 x 732 mm | Weight: 27 kg
• Dimensions of outdoor unit: 714 x 800 x 285 mm | Weight: 41 kg
• Refrigerant: R32 | Precharge: 1.20 kg
• Pipe diameter: 6.35 mm (1/4") liquid | 12.7 mm (1/2") gas
• Maximum pipe length: 30 m (vertical and total)
• Operating range:
  • Cooling: -15 ºC to +46 ºC
  • Heating: -10 ºC to +24 ºC

The Mitsubishi Electric MGPEZ-50VJA is an ideal choice for efficiently and quietly climate-controlling spaces, with a versatile design that adapts to any installation and advanced control for optimal comfort management.
