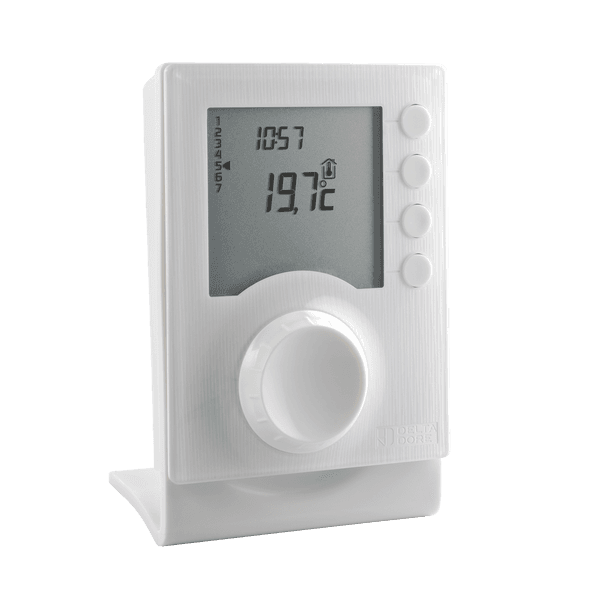

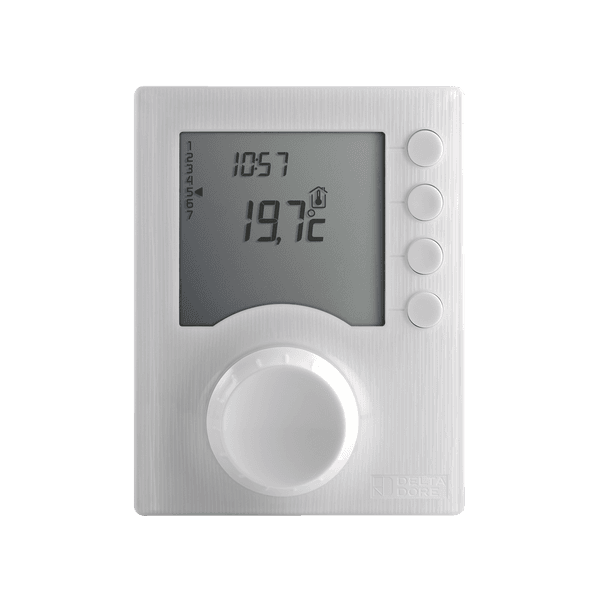

Delta Dore Tybox 137+ Wireless Room Thermostat

The Delta Dore Tybox 137+ wireless programmable thermostat, reference 6053073, is designed to provide precise and flexible control of heating systems such as boilers, non-reversible heat pumps, and pellet stoves. This device combines ease of use with advanced programming options, allowing for efficient temperature management and improved comfort at home. Its compatibility with the Tydom App and voice assistants enables remote control, ensuring a comfortable and modern experience.

Intuitive control and backlit display

The Tybox 137+ thermostat is designed to be easy to use, thanks to its selector and backlit display that allows for clear visibility of settings and temperature. This intuitive interface facilitates the setup and control of the heating system, making any adjustments quick and simple, even in low light conditions.

Advanced and customizable programming

The Tybox 137+ offers multiple options for daily or weekly programming, with pre-programmed settings that can be modified at any time to suit the user's specific needs. This flexibility in programming allows for adjusting heating cycles according to usage habits, optimizing energy consumption and enhancing comfort. Users can choose between two temperature settings: Comfort and Economy, allowing them to easily switch between a higher temperature for more active times and a lower temperature to save energy when heat is not needed.

Additionally, this model features a smart heating start function that anticipates the heating period to ensure that the desired temperature is reached just when needed, guaranteeing greater comfort and optimized energy efficiency.

Advanced energy-saving features

The Tybox 137+ thermostat includes several advanced functions designed to maximize energy savings:

• Vacation mode: Switches the thermostat to Frost Protection mode when away from home for extended periods, preventing energy waste while ensuring that installations are not damaged by extremely low temperatures.
• Unscheduled absence function: This function allows temporarily overriding the set temperature in case of unforeseen events, preventing unnecessary energy expenditure when the home is empty for longer than expected.

Remote control and connectivity

The Tybox 137+ is compatible with the Tydom connected gateway, allowing for remote management of the heating system via the Tydom App or through voice assistants like Alexa or Google Assistant. This feature offers complete control of the system from anywhere, allowing users to adjust the temperature, change operating modes, or activate special functions like vacation mode, all from a smartphone or via voice commands.

Advanced regulation: PID or On/Off

The thermostat offers two regulation options:

• Proportional Integral Derivative (PID): This control system adjusts the temperature progressively, ensuring that the environment maintains a constant and precise temperature.
• On/Off: A simpler control that turns the heating on or off based on whether the temperature reaches the desired level.

Highlighted technical features:

• PID or On/Off regulation: Precise and efficient temperature control.
• Daily or weekly programming: Flexible setup with modifiable pre-programs to adapt to user needs.
• Remote control via Tydom App: Ability to manage the system remotely via smartphone or voice assistants.
• Anticipation function: The thermostat anticipates the heating time to reach the desired temperature at the right moment.
• Vacation mode and unscheduled absence function: Optimization of energy savings during prolonged or unforeseen absences.

Technical data

• Regulation: PID with adjustable time base or On/Off.
• Operating modes: Heating, with two temperature settings: Comfort and Economy.
• Power type:
  • Transmitter: Operates with 2 LR03 alkaline batteries (included).
  • Receiver: Powered by 230 V mains.
• Radio range: Up to 300 meters in open field.
• Dimensions:
  • Transmitter: 104 mm high x 80 mm wide x 35 mm deep.
  • Receiver: 102 mm high x 54 mm wide x 20 mm deep.
• Operating temperature: Between -10°C and 40°C.
• Compatibility: Compatible with the Tydom connected gateway for remote control.

Installation and maintenance

The Tybox 137+ is easy to install and use thanks to its wireless design. The transmitter operates with 2 alkaline batteries, allowing it to be placed anywhere in the home without the need for additional wiring, while the receiver is powered by the electrical grid. Its wireless connectivity ensures a wide operating range, up to 300 meters in open field, ensuring stable operation in most home environments.

The maintenance of the thermostat is minimal, and its robust and efficient design ensures a long lifespan. Additionally, the intuitive interface and remote control options allow for simple and hassle-free management.

Highlighted advantages:

• Remote control: Complete management of the heating system through the Tydom App or voice assistants.
• Energy savings: Advanced functions such as vacation mode, anticipation, and flexible programming optimize energy use.
• Easy installation and use: Its wireless design and intuitive interface make it accessible for any user.

Applications

The Delta Dore Tybox 137+ is ideal for homes seeking efficient and flexible control of their heating system, offering both advanced programming and remote control. It is perfect for boilers, non-reversible heat pumps, and pellet stoves, providing comfort, energy savings, and ease of use through connectivity with the Tydom App and voice assistants.
