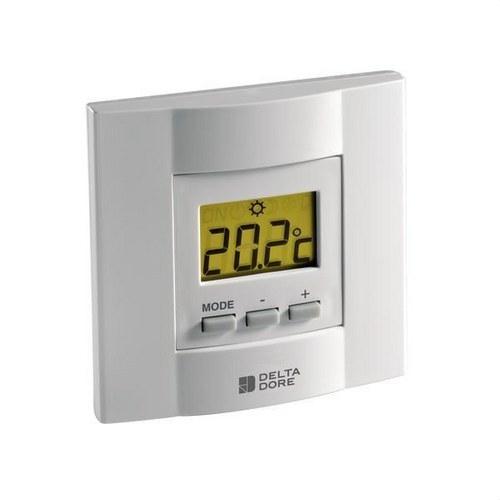

Wired Room Thermostat Delta Dore Tybox 51

The Delta Dore Tybox 5 wired room thermostat, reference 6053036, is specifically designed for controlling reversible heat pumps, providing precise and convenient control of the air conditioning system. This thermostat stands out for its ease of use, with a simple interface that includes shortcut keys and a backlit LCD screen that makes it easy to view the temperature and settings in any lighting condition.

The Tybox 5 offers 3 operating modes: Heat, Cool, and Off, making it a versatile option for efficiently managing both heating and cooling. Additionally, its compact and elegant design makes it ideal for any indoor environment, fitting well in both homes and offices.

Easy control with backlit screen

The Tybox 5 thermostat is equipped with a backlit LCD screen, allowing easy reading of the current and set temperature, as well as the selected operating mode. This intuitive design, along with its control keys, facilitates the daily operation of the thermostat, ensuring that temperature adjustment is simple and quick.

Moreover, the thermostat offers a key lock function, which prevents accidental changes to the settings, especially useful in shared environments or homes with children.

Proportional-Integral (PI) regulation and operating modes

The Delta Dore Tybox 5 uses a PI (Proportional-Integral) control system, which precisely adjusts the temperature based on the system's demand, ensuring constant thermal comfort and avoiding sudden temperature fluctuations. This regulation is ideal for reversible heat pumps, which require efficient control in both heating and cooling modes.

The 3 operating modes include:

• Heat: Activates the heating system to maintain the desired temperature during cold months.
• Cool: Activates the cooling system to keep the environment cool during the summer.
• Off: Turns off the air conditioning system but retains the settings for when heating or cooling needs to be reactivated.

Temperature adjustment and display

The Tybox 5 allows users to adjust the setpoint temperature in each mode (heat or cool), adapting to the specific needs of the home or office. Additionally, it displays both the ambient temperature and the setpoint temperature on its screen, facilitating control and ensuring that the system operates according to the desired parameters.

Key technical features:

• PI regulation: Proportional-Integral control, which adjusts the temperature precisely.
• Backlit LCD screen: Easy reading of temperature and settings, even in low light conditions.
• Function lock: Prevents accidental changes in settings, ideal for shared environments or with children.

Technical data

• Operating modes: Heat, Cool, Off.
• Power type: Operates with 2 alkaline LR03 batteries (included).
• Dimensions: 80 mm high x 80 mm wide x 23 mm deep.
• Screen: Backlit LCD for easy viewing.
• Operating temperature range: Between -5°C and 40°C.
• Regulation: Proportional-Integral (PI), optimised for reversible heat pumps.
• Warranty: 5 years.

Installation and maintenance

The Tybox 5 is designed for easy indoor installation and is compatible with most reversible heat pump systems. Its power supply via 2 alkaline LR03 batteries ensures quick installation without the need for additional wiring. Furthermore, the battery life is long-lasting, and replacement is simple, without the need to reprogramme the device.

The maintenance of the thermostat is minimal, thanks to its robust and efficient construction. The key lock function ensures that settings are not accidentally modified, which facilitates its use in homes and offices.

Highlighted advantages:

• Precise climate control: Ideal for reversible heat pumps, ensuring optimal thermal comfort both in winter and summer.
• Backlit screen: Facilitates reading and control, enhancing user experience.
• Lock function: Prevents accidental changes, making it safe for environments with children or inexperienced users.

Applications

The Delta Dore Tybox 5 is ideal for managing reversible heat pump systems in homes, offices, or any indoor space that requires efficient temperature control. It is perfect for users seeking a simple yet effective solution, with an easy-to-use interface and precise regulation for both heating and cooling.
