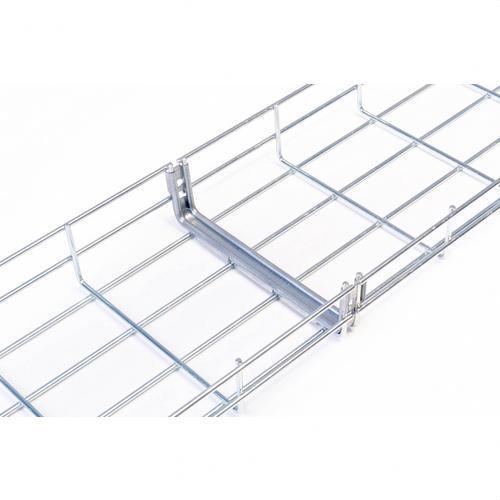

Electrogalvanised Grid Tray 100x60mm - 3 Metre Unit

The electro-zinc plated grid tray BMPZ610 from Aiscan is an essential component in cabling systems, designed to support conductors and cables safely and efficiently. Manufactured under the standards of UNE-EN 61537:2007, this tray is distinguished by its high resistance, ease of installation, and its ability to operate in extreme conditions. Ideal for installations in industrial and commercial environments, this tray provides a durable and reliable solution for cable management in construction, renovation, or maintenance projects.

Key Features:

• Material and Finish: The tray is made of electro-zinc plated metal material, which provides high resistance to corrosion. This property is crucial to ensure the longevity of the product even in environments with high humidity or adverse conditions, making it ideal for outdoor installations or industrial spaces exposed to corrosive agents.

• Impact and Flame Spread Resistance: This model is non-flame propagating, complying with the most demanding safety standards. Additionally, its impact resistance reaches up to 20 J, making it suitable for areas where accidental impacts or falls of heavy objects may occur.

• Operating Temperature Range: The tray is designed to withstand a minimum temperature of -40 ºC and a maximum temperature of 150 ºC, allowing it to be used in a wide range of environments, from extreme cold conditions to high temperatures.

• Electrical Capabilities: The material of the tray ensures electrical continuity and electrical conductivity, facilitating efficient current distribution in electrical systems. Furthermore, its design allows cable passage without generating electrical interference, ensuring safe and reliable operation.

• UNIFAST System: The tray includes the UNIFAST system, which guarantees a quick and secure connection of straight sections. This system facilitates the assembly of trays, reducing installation time and ensuring the stability and firmness of the structure. This system is pre-installed in sizes 60x100, 60x150, 60x200, 60x300, 60x400, 60x500, and 60x600 mm. For other sizes, 2 to 4 coupling sets (CUB) will be required.

Technical Specifications:

• Reference: BMPZ610
• Dimensions (AxB): 60 x 100 mm
• Rod Diameter: 3.9 mm
• Usable Section: 46 cm²
• Weight (kg/m): 0.74 kg
• Corrosion Resistance: Class 6 (high corrosion resistance)
• Operating Temperature: -40 ºC to 150 ºC
• Impact Resistance: Up to 20 J
• Manufacturing Standard: UNE-EN 61537:2007

Main Accessories:

• Coupling Set (CUBZ-G): For quick and secure connection of tray sections.
• Universal Channel Tray Cover (TUBC): To cover the tray and protect cables.
• Omega Supports (SOMS-A, SOUMS-A): For additional support in tray installation.
• Reinforced Brackets (ESCRS-A): To secure the tray structure in complex installations.

Product Advantages:

• High-quality manufacturing with electro-zinc plating for maximum corrosion resistance.
• Quick and efficient installation thanks to the UNIFAST system and available mounting accessories.
• High load capacity and resistance, even in extreme temperature conditions.
• Complies with safety standards, ensuring resistance to flame spread and impacts.
• Ideal for electrical and cabling systems in industrial, commercial, and infrastructure environments.

The electro-zinc plated grid tray BMPZ610 from Aiscan offers a high-performance solution for cable installation and distribution, combining ease of installation, resistance, and durability in a single product.
