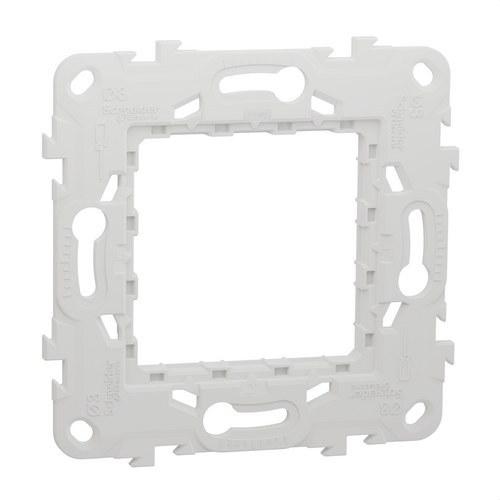

Universal Plastic Frame for 2 Modules New Unica

The Schneider Electric New Unica Universal Plastic Frame is an efficient and robust solution for installing electrical mechanisms of up to 2 modules. This frame is part of the New Unica range, known for its durability and ease of use, making it ideal for both residential and commercial projects. Its simple and functional design facilitates the mounting of frames and electrical devices, ensuring a stable and secure installation.

This frame is made from PBT (polybutylene terephthalate) GF30, a glass fibre reinforced plastic material that guarantees high mechanical strength, even under intensive use conditions. This material is known for its durability, resistance to deformation, and ability to withstand high-temperature environments, making it a reliable option for electrical applications. Additionally, its lightweight and robust composition ensures easy handling during installation.

The screw fixation ensures the frame stays firmly in place, providing a solid base for the mechanisms and frames mounted on it. This type of fixation also ensures a precise fit, reducing any possibility of movement or displacement once installed. The frame has been designed to be compatible with 2 modules, providing flexibility for different switch or socket configurations.

Its compact dimensions of 75 mm in width, 75 mm in height, and only 7.88 mm in depth allow for easy integration into any type of wall or structure, without occupying more space than necessary. Despite its slim design, the frame offers excellent strength and stability, making it suitable for a flush and aesthetically clean installation.

The frame features a universal angle support, meaning it is designed to easily adapt to various mounting situations, allowing its use in a wide variety of projects. Its square shape also facilitates alignment and integration into the overall electrical system, offering a flexible and efficient solution.

This frame complies with IEC 60884-1 and IEC 60669-1 standards, ensuring that the product has been manufactured under the strictest safety and quality standards, providing peace of mind regarding its reliability in electrical applications.

Key technical features:

• Material: PBT (polybutylene terephthalate) reinforced with glass fibre (GF30)
• Fixation: Screw fixation for secure installation
• Number of modules: Compatible with 2 modules
• Dimensions: 75 mm in width, 75 mm in height, and 7.88 mm in depth
• Mounting support: Universal angle support for greater versatility
• Standards: Complies with IEC 60884-1 and IEC 60669-1
• Weight: 0.011 kg, lightweight and easy to handle

The New Unica Universal Plastic Frame by Schneider Electric is the perfect choice for those seeking a durable and high-quality mounting support for their electrical projects. Thanks to its strength, simple installation system, and compatibility with various mechanisms, this frame ensures a solid and long-lasting installation, providing peace of mind and efficiency in any type of electrical installation over the long term.
