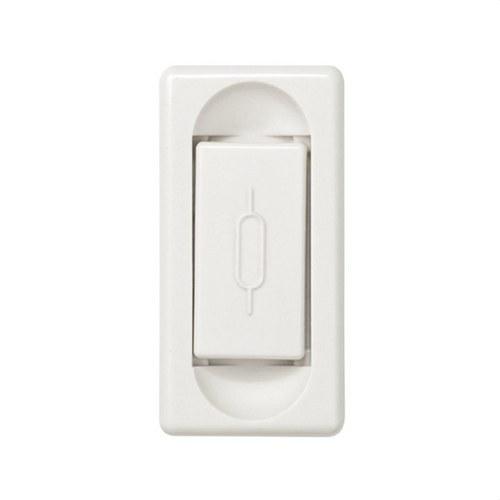

Base fuse holder for semi-element cylindrical fuses 16A 250V and size 5x20mm white Simon 27 Play

The Simon 27 Play half-module fuse holder base, reference 27000-34, is a practical and safe solution for protecting electrical circuits with cylindrical fuses. Designed to integrate seamlessly into Simon 27 Play series installations, this base accommodates 5x20 mm fuses with a capacity of up to 16 amperes and 250V~, providing reliable protection against overloads and short circuits.

Its compact half-module design makes it easy to integrate into modular mechanisms, allowing for flexible configurations within control panels, centralizations, or both residential and professional installations. The white finish maintains the clean and uniform aesthetic characteristic of the Simon series.

The base is made with high-quality metal components and halogen-free insulation, along with a thermoplastic cover that provides mechanical strength and durability. This combination of materials ensures safe operation even under continuous use conditions.

The system is designed to work with cylindrical fuses, allowing for quick and easy replacement when maintenance or circuit protection is required.

Main features of the Simon 27 Play fuse holder base:

• Fuse holder base for 5x20 mm cylindrical fuses.
• Rated capacity of 16 A and 250V~ power supply.
• Compact half-module format.
• White finish.
• Operates with a replaceable cylindrical fuse.
• Manufactured with metal components and halogen-free insulation.
• Durable and resistant thermoplastic cover.

Compatibility with series and frames:

• Simon 27 Play
• Simon 27 Neos
• Simon 27 Scudo
• Simon 27
• Simon 27 Centralizations
• Simon 44 Aqua

Technical data:

• Rated current: 16 A.
• Power supply voltage: 250 V~.
• Operating mode: cylindrical fuse.
• Admitted cable section: from 1.5 to 2.5 mm².
• Protection rating: IP20.
• Number of modules: half-module.
• Certification: CE.

Operating conditions:

• Operating temperature: from 5 ºC to 40 ºC.
• Storage temperature range: from -25 ºC to 50 ºC.

Installation:

• Installation type: suitable for surface and flush mounting.
• Terminal connection type: screw.
• Required cable stripping: 11 mm.
• Compatible claw: Simon 27.
• Installable in universal, American, reduced-space, and centralization flush-mounting boxes.

Its design allows for quick and safe installation, adapting to both new installations and renovations where fuse protection systems need to be integrated.

Maintenance

To keep the product in good condition, it is recommended to clean the surface with a soft cloth slightly dampened with soapy water. Do not use abrasive cleaners or products containing chlorine, as they may damage the mechanism’s finish.

The Simon 27 Play fuse holder base is a simple yet essential component in a well-protected electrical installation. It’s one of those mechanisms that often goes unnoticed, but when needed, you’ll appreciate its reliability and proper installation.
