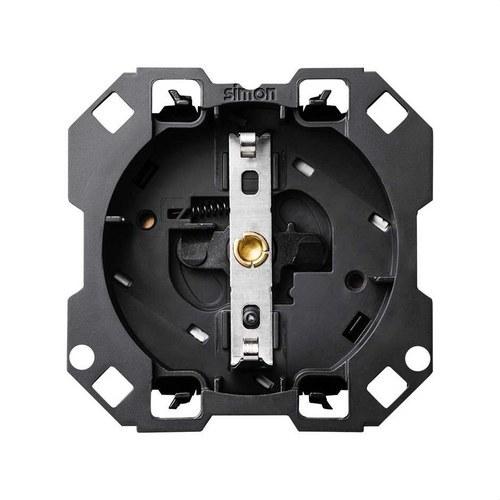

Schuko Socket Base 16A 250V with 1click Termination Simon 100

The Schuko socket outlet from the Simon 100 series is an advanced solution designed to provide maximum safety, quick installation, and intuitive use in any electrical environment. With a current rating of 16 A and a voltage of 250 V~, it ensures a stable and reliable power supply for all types of devices.

One of the most innovative features of this mechanism is its 1Click® screwless terminal system, which allows for fast, secure connections without the need for additional tools. This system makes cable insertion easy, enabling individual or simultaneous connections and significantly optimizing installation time.

The connection system features blade-type contacts, which, when the cable is inserted and the lever is activated, cut through the insulation to establish direct contact with the copper conductor. This ensures a firm, stable, and long-lasting connection.

Main technical features:

• Type: Schuko socket outlet
• Current: 16 A
• Voltage: 250 V~
• Connection system: 1Click® cut-type (screwless)
• Supported cable section: from 1.5 to 2.5 mm²
• Format: Schuko
• Version: 1 element
• Protection rating: IP20
• Certification: CE

The mechanism’s design allows for the separation of input and output cables into different compartments, increasing installation safety and making cable management easier. Additionally, the large connection levers are designed for comfortable and precise handling.

The Simon 100 series stands out for its focus on ergonomics and ease of use, with a more intuitive and memorable mechanism layout that enhances the experience for both installers and end users.

Operating conditions:

• Operating temperature: between 0 ºC and 40 ºC
• Storage temperature: between -25 ºC and 75 ºC

The socket is designed for flush mounting in universal boxes and should be installed horizontally, integrating perfectly with Simon 100 series frames for a modern and uniform finish.

Maintenance is simple—just clean with a soft, dry cloth. It is recommended to avoid abrasive or chlorine-based products to preserve its properties and finish.

Includes:

• Socket mechanism
• Installation instructions

A practical and efficient solution that combines technical innovation, safety, and ease of installation in a single mechanism.

Ideal for those who want a quick, hassle-free installation with the peace of mind that everything is properly connected from the very first moment.
