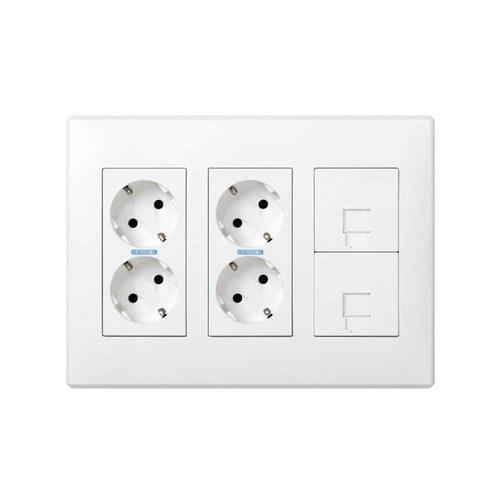

Surface or Flush Mount Box Kit for 3 Double Modules with 2 Double Sockets and 2 Plates 1 RJ45 White Simon 500 Cima

The Simon 500 Cima Kit, reference 51000301-030, is a complete solution designed for surface or flush wall installation, including 2 double Schuko sockets and 2 RJ45 plates. This kit is intended to provide electrical and data connectivity in workstations, offices, or any environment where organisation and functionality are essential. With its white finish and high-quality materials, this kit is ideal for those seeking an efficient, safe, and aesthetically pleasing installation.

Modular design and installation versatility:

This Simon 500 Cima kit is designed to accommodate up to 6 elements in total, distributed between 2 double sockets and 2 RJ45 plates. Its installation is extremely versatile, as it can be flush-mounted or surface-mounted, allowing for seamless integration into any type of environment. This makes it an ideal choice for offices, conference rooms, data centres, and other areas requiring easy and organised access to both electrical power and data connections.

The kit's modular design allows for easy configuration and expansion, meaning it can be adjusted to meet the specific needs of each space. Additionally, the RJ45 plates use a Keystone I, II clip-in format compatible with a wide range of connectors, including ATT®/Avaya®, ensuring a flexible and compatible installation with different data cabling systems.

Safe and halogen-free materials:

This kit is made from materials that meet the highest safety standards. The components are made from self-extinguishing thermoplastic, meaning they can prevent flame spread in the event of a fire, providing an additional level of protection. Furthermore, being halogen-free, the material does not emit toxic gases in the event of a fire, ensuring greater safety for users and meeting international standards.

Strength and durability:

The Simon 500 Cima is designed to withstand intensive use conditions. Its heat resistance of up to +125°C ensures that the kit can operate reliably even in environments where temperatures are high. Additionally, its design includes IP20 protection, guaranteeing a good level of protection against dust and accidental contact with internal components.

The kit's dielectric strength is tested at 2000 V at 50 Hz for 1 minute, ensuring its ability to withstand voltage peaks and ensure reliable and safe operation. Furthermore, the incorporated metal partition ensures electromagnetic immunity for voice, data, and multimedia (VDM) wiring, making it an excellent choice for ensuring data signal integrity in environments where electromagnetic interference may exist.

Key technical specifications:

• Sockets: 2 double Schuko sockets for standard 16 A circuits.
• RJ45 Plates: 2 RJ45 plates compatible with Keystone I and II formats.
• Material: Halogen-free, self-extinguishing thermoplastic.
• Dimensions: 220 mm length x 164 mm width x 46 mm depth.
• Voltage: 250 V~.
• Heat resistance: Up to +125°C.
• Protection grade: IP20.
• Operating temperature: Between 5°C and 40°C.
• Admitted cable section: From 1.5 to 2.5 mm².
• Installation type: Suitable for flush or surface installation.
• Connectivity: Compatible with Simon©, AMP netconnect©, Systimax©, BeldenCDT© and other RJ45 connector manufacturers based on the Keystone format.
• Safety standards: Complies with IEC 60695 and flame extinction regulations (850°C / 30 seconds).

Ease of installation and maintenance:

This Simon 500 Cima Kit is designed for quick and easy installation, whether flush-mounted or surface-mounted. For flush installations, a flush-mounted box (reference 51020103-039) is required, while for surface installations, a surface wall box (reference 51050003-030) is needed. Installation is carried out using a cutting terminal system (1Click®), facilitating the process without the need for complex tools.

Maintenance of the kit is equally simple. For cleaning, it is recommended to use a soft, dry cloth, avoiding abrasive products or those containing chlorine. This feature ensures that the kit maintains its clean appearance and optimal functionality for longer, without requiring special care.

Advantages of the Simon 500 Cima Kit:

• Modular design: Facilitates configuration and expansion according to the needs of each space.
• Wide compatibility: Works with a wide variety of RJ45 connectors and meets the most demanding standards.
• Guaranteed safety: Halogen-free and self-extinguishing materials, increasing safety in case of fire.
• Easy installation: Suitable for both flush and surface installations, with a quick and efficient terminal system.
• Durability: Capable of operating at high temperatures and with wear resistance, ideal for intensive use installations.
