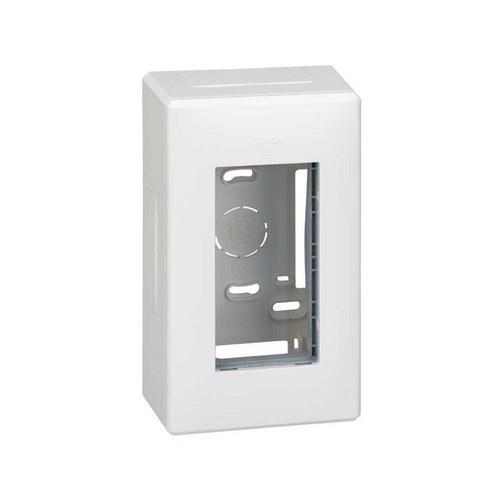

Surface Wall Box for 1 Double Element White Simon 500 Cima

The Simon 500 Cima Surface-Mounted Wall Box for 1 Double Element White (ref. 51000001-030) is a robust, professional solution for surface-mounted electrical and data installations. Designed to offer maximum safety, durability, and versatility, it is part of the renowned Simon 500 Cima range, specifically aimed at technical and professional environments.

With dimensions of 97 x 167 x 59 mm and a depth of 50 mm, this box is designed to house 1 double element (2 modules), allowing for a neat and secure installation. Its white finish (RAL 9003) ensures seamless aesthetic integration into any space.

Made from high-quality plastic, it features a metal partition that ensures electromagnetic immunity for VDM cabling when installed in the designated slots, guaranteeing proper separation and protection of wiring.

Key technical features:

• Series: Simon 500 Cima
• Version: 1 double element (2 modules)
• Dimensions: 97 x 167 x 59 mm
• Usable depth: 50 mm
• Finish: White (RAL 9003)
• Protection rating: IP4X
• Mechanical resistance: IK07
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown
• Insulation resistance: >5 MΩ at 500 V
• Heat resistance: +125 ºC (IEC 60695-10-2)
• Maximum working temperature: +60 ºC
• Installation temperature range: -5 to +60 ºC
• Glow wire test: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11)
• 4 side entries
• 1 pre-punched hole Ø25 mm
• 4 holes for clamps
• 1 housing for grounding connection

Compatibility:

• Simon 500 Cima mechanisms
• Simon 27 Play and Simon K45 (with specific adapters)
• Compatible with the Simon Trunking range

Package contents:

• Surface-mounted box
• Metal partition
• Grounding cable
• Mounting plugs
• Screws
• Installation manual

Installation is carried out on a surface wall using the supplied screws. Optionally, the frame can be screwed to the box for extra fixation when required by the project. Component removal and frame disassembly can only be done with tools, ensuring greater safety.

Maintenance:

• Clean with a soft, dry cloth.
• Do not use abrasive cleaners or products containing chlorine.

A professional, durable surface-mounted box designed to meet the highest standards in electrical and data installations.

If you are looking for a solid, safe, and easy-to-integrate solution for any technical project, this Simon 500 Cima box is a reliable choice that will make your work easier from day one.
