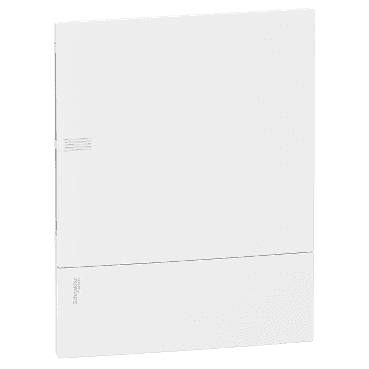

Flush-Mount Distribution Box 2 Rows 24 Modules White Door

The Resi9 flush-mounted distribution box, reference MIP20212 by Schneider Electric, is a robust and elegant solution specifically designed for electrical installations in residential environments, both in new builds and renovation projects. This distribution board is ideal for ensuring the safety and organisation of electrical circuits, providing ample space for the installation of modular devices and protecting the installation against external factors.

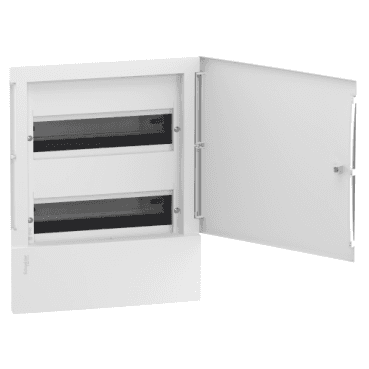

This distribution box comprises 2 rows that can accommodate a total of 24 modules of 18 mm, allowing the installation of a wide range of modular equipment such as circuit breakers, residual current devices, contactors, and other control devices. The modular design provides flexibility and allows for a clear and efficient organisation of electrical circuits within the enclosure.

The board is equipped with an asymmetrical 35 mm DIN rail, facilitating the installation of modules in organised rows, making assembly quick and easy for professional installers. Additionally, the box is equipped with pre-cut holes for cable entry, which speeds up installation and minimises the need for modifications at the time of connection.

Technical Features:

• Number of modules per row: 12 modules (18 mm per module)
• Total number of modules: 24 modules
• Number of rows: 2
• Rated current [In]: Up to 63 A
• Rated voltage: 230-400V AC
• Type of door: Single white door, RAL 9003
• Protection rating: IP40 (protection against contact with solid objects larger than 1 mm)
• Enclosure material: High resistance technoplastic (rear, door, and front)
• Compliance: IEC 529, IEC 60439-3, IEC 60670-24

Dimensions:

• Height (overall): 377 mm
• Width (overall): 294 mm
• Total depth: 98 mm
• Flush-mounted depth: 80 mm
• Flush-mounted width and height: 270 mm (width) x 353 mm (height)

The compact and ergonomic design of this flush-mounted distribution box allows for its installation in a wide range of residential environments, even in confined spaces. The enclosure is made of high-quality technoplastic, ensuring optimal impact resistance and protecting internal components from dirt and dust. The smooth white door of this box not only adds a modern and discreet touch but also ensures quick and easy access to the installed devices.

Additional Advantages:

• Ergonomics and flexibility: The modular design and flush-mounted arrangement make this distribution box extremely easy to install and maintain, providing flexibility to adapt to various electrical configurations.
• Reliable protection: With a protection rating of IP40, this enclosure protects internal electrical components against dust and small solid objects, ensuring greater durability of the electrical system.
• Future-ready: The board can be equipped with a position light, making it easy to locate during electrical failures or in emergency situations, enhancing the safety of the environment.

Applications:

• Residential installations: Perfect for new builds or renovations, this distribution box easily adapts to current safety regulations and offers ample space for any type of residential electrical installation.
• Easy maintenance: The box design and its compatibility with standard modular devices facilitate access and maintenance of electrical systems, reducing intervention time in case of failures or adjustments.

With its modern design and advanced technical specifications, the Resi9 flush-mounted distribution box 2 rows 24 modules by Schneider Electric is the ideal choice for installers seeking a safe, flexible, and aesthetically pleasing solution in residential projects.
