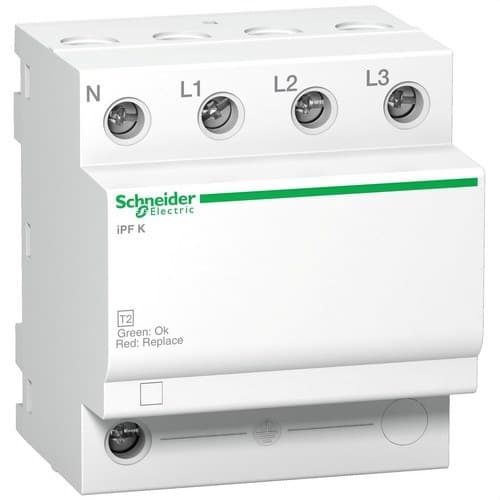

Type 2 Transient Surge Protector Acti9 iPFK65 65KA 340V 3P+N

This product, the Acti9 iPF K 65, is a modular surge arrester. It protects 3P installations. The maximum discharge current Imax is 65 kA. The nominal discharge current In is 20 kA. The range of single-piece multipole surge arresters is adapted for TT, TN-S, TN-C earthing systems. This type 2 incoming protection surge arrester is recommended for a very high-risk level. The maximum continuous operating voltage Uc in common mode (between neutral and earth) is 260 VAC. The maximum continuous operating voltage Uc in differential mode (between phase and neutral) is 340 VAC. The protection level of the impulse voltage is 1.5 kV in common mode (between neutral and earth) and in differential mode (between phase and neutral). The rated operating voltage Ue is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The weight is 335g. The protection degree is IP20 and IP40 in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C. This product complies with IEC 61643-11 and EN 61643-11 standards.
