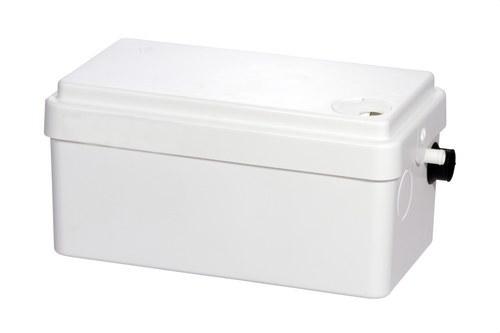

SFA SANISHOWER evacuation pump for showers

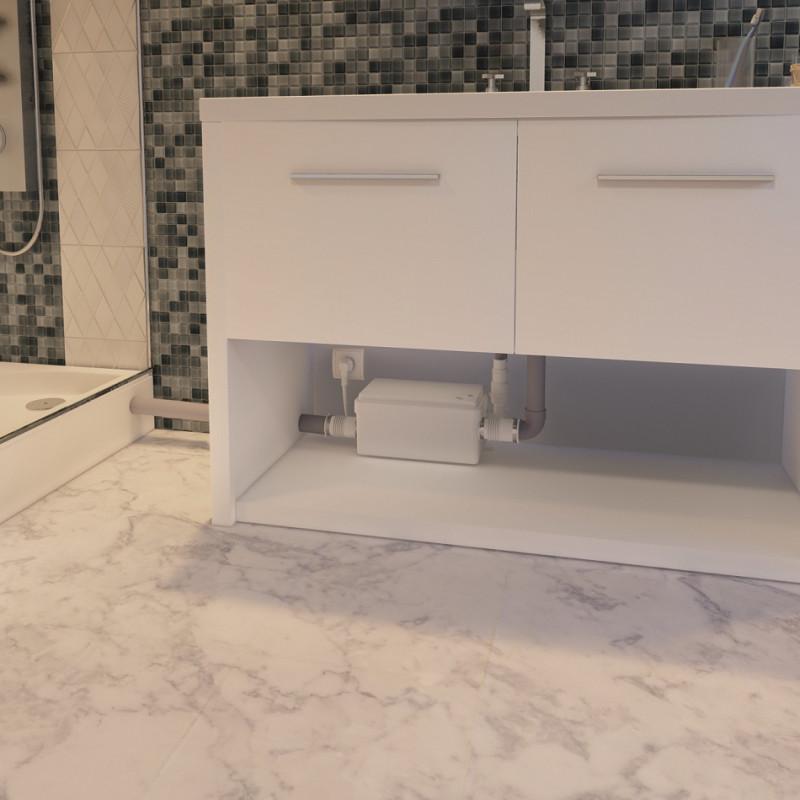

The SFA SANISHOWER evacuation pump, reference 0101000, is a compact and efficient solution specifically designed to evacuate gray water from showers, sinks, and bidets. This pump is ideal for installation in small spaces, such as small bathrooms, as it can be easily hidden inside a piece of furniture or even under the shower tray, provided it has a minimum height of 12 cm. Thanks to its discreet and functional design, it allows for optimizing the layout of bathrooms without the need for major renovations or structural modifications.

The SANISHOWER can evacuate wastewater up to 4 meters vertically or 40 meters horizontally, providing great flexibility when designing a bathroom's drainage system. This means that even if the installation is far from the main drain, this evacuation pump ensures that gray water will be evacuated efficiently and safely, overcoming the limitations of traditional drainage systems.

The SANISHOWER operates completely automatically, making it easy to use and reducing the need for maintenance. The motor is activated by a pressure detection system: when water enters the tank, it presses the sensor, which starts the motor and allows for the immediate evacuation of wastewater. This mechanism ensures reliable operation, as it only activates when necessary, prolonging the motor's lifespan and reducing energy consumption.

The pump features two inlets that allow for the connection of both a shower and a sink or bidet. The inlet for the shower has a diameter of 40 mm, while the inlet for the sink or bidet uses a diameter of 32 mm. This versatility makes it perfect for bathrooms that require the evacuation of multiple elements at once, ensuring efficient performance without the risk of overload.

To ensure optimal operation, the SANISHOWER includes a drain elbow equipped with a non-return valve, which prevents wastewater from returning to the system once evacuated. This elbow is designed for 32 mm pipes, although it is also compatible with diameters of 22 mm and 28 mm, providing greater flexibility in installation.

With an energy consumption of just 250 W, the SANISHOWER is an energy-efficient option, perfect for homes where energy savings are a priority. Its noise level is 46 dB(A), ensuring quiet operation, ideal for installation in residential environments where acoustic comfort is important. Additionally, the device has an electrical rating of Class I, ensuring a high level of safety in its use, especially in humid environments like bathrooms.

Technical specifications of the SANISHOWER:

• Number of inlets: 2 (one for shower and one for sink or bidet)
• Diameter of inlets: 40 mm (shower) / 32 mm (sink/bidet)
• Recommended return diameter: 22/28/32 mm
• Motor consumption: 250 W
• Power supply voltage: 220-240 V / 50 Hz
• Electrical class: I
• Noise level: 46 dB(A)
• Maximum horizontal return: 40 meters
• Maximum vertical return: 4 meters
• Minimum activation height: 65 mm
• Minimum shower tray height: 12 cm

The SANISHOWER not only stands out for its performance but also for its ease of installation. With a standard electrical outlet and a simple water connection, the installation process is quick and straightforward, making it a practical option for both new constructions and renovations. This model is ideal for optimizing space usage in small bathrooms or in locations far from the main drainage network, without sacrificing functionality or comfort.

In summary, the SFA SANISHOWER evacuation pump is a reliable and versatile option for the evacuation of gray water in bathrooms with showers, sinks, and bidets. Its evacuation capacity, ease of installation, and quiet operation make it an ideal solution for optimizing wastewater evacuation in domestic environments, while ensuring the comfort and efficiency that users demand.
