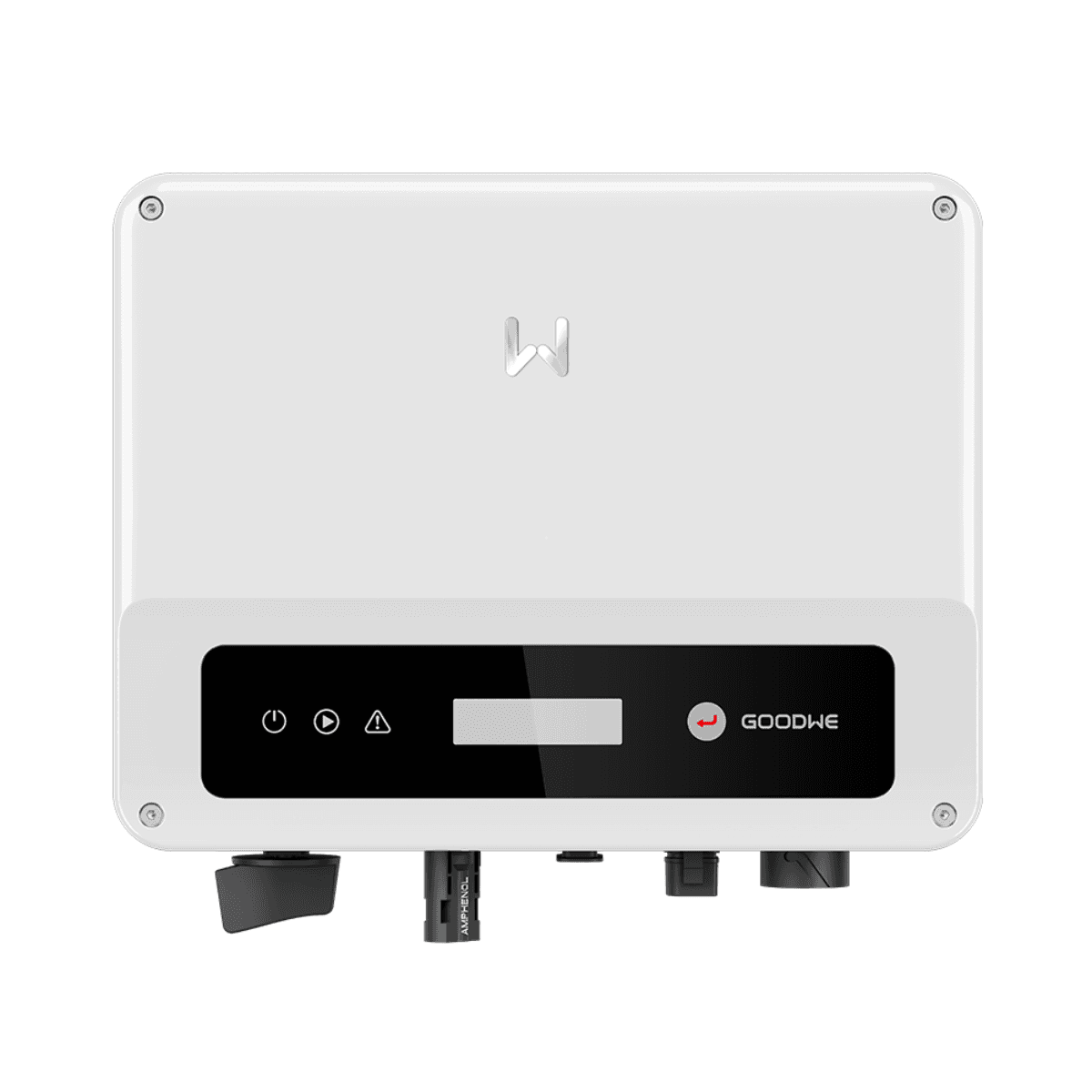

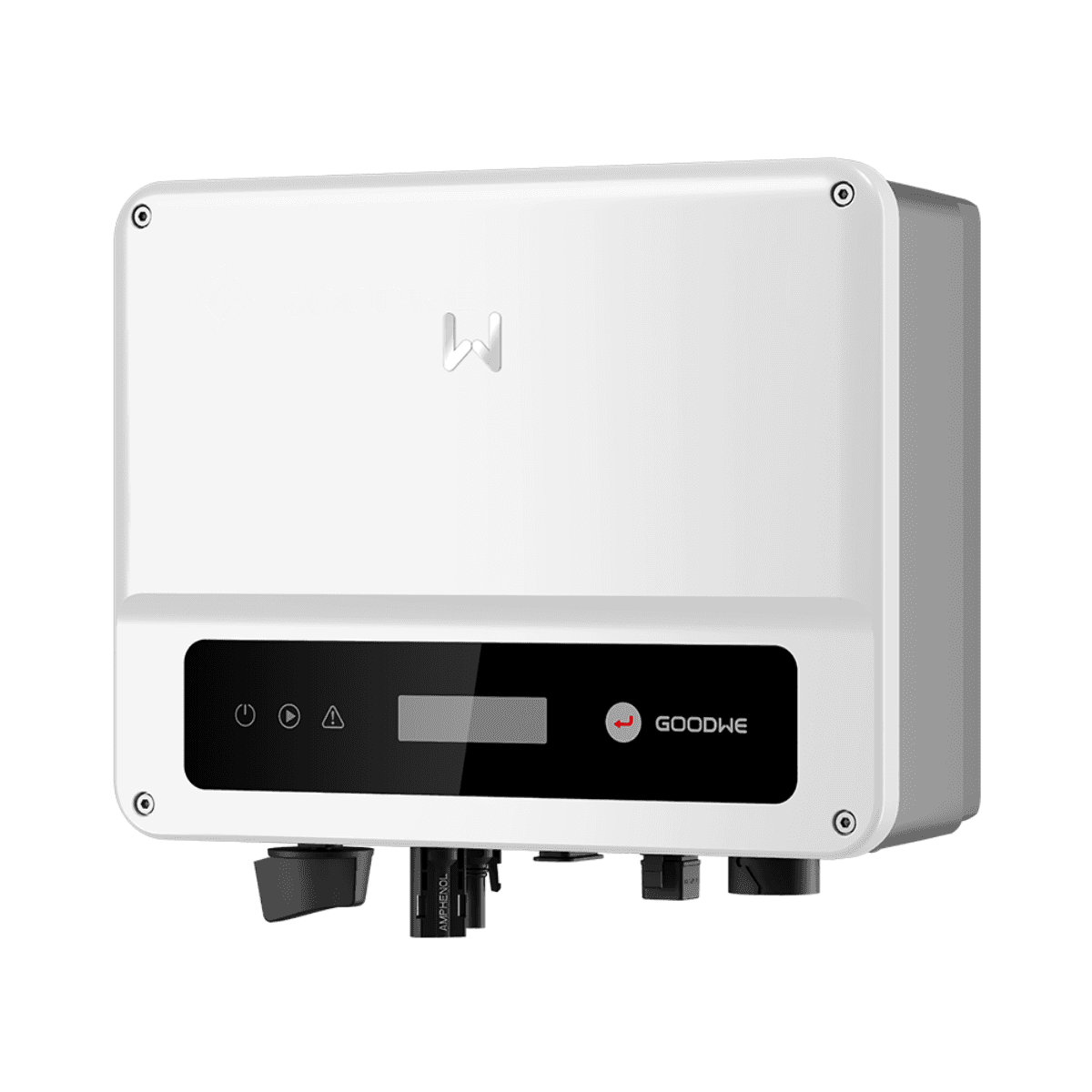

GoodWe XS GW3000-XS 3 kW Single-Phase Solar Inverter

The GoodWe XS GW3000-XS 3 kW single-phase solar inverter is an advanced and ultra-compact solution specifically designed for residential applications. This inverter stands out for its small size, equivalent to that of an A4 sheet, and a weight of only 5.8 kg, making it one of the lightest and easiest to install in the market. Ideal for homes with small to medium-scale photovoltaic systems, this inverter offers a perfect combination of convenience, high efficiency, and ease of use.

Ultra-compact and easy to install:
The design of the GoodWe XS GW3000-XS is not only compact but has also been optimized for quick and easy installation. With dimensions of 295 × 230 × 113 mm and a weight of less than 6 kg, this inverter can be easily transported and installed, significantly reducing shipping and installation costs. Additionally, its discreet and elegant design fits any space, making it ideal for both indoor and outdoor use thanks to its IP65 protection rating, which makes it resistant to weather conditions.

High energy efficiency:
The GoodWe XS GW3000-XS inverter offers a maximum efficiency of 97.6%, ensuring optimal utilization of the energy generated by the solar panels. Its European efficiency is also high, reaching 97.2%, making it one of the most efficient options in its class. Furthermore, the inverter allows for a DC input oversizing of 130%, meaning it can handle more energy than it is nominally designed to convert, thus maximizing energy production even on days with lower solar radiation.

Flexible connectivity options:
The GoodWe XS GW3000-XS is equipped with LAN and Wi-Fi communication options, allowing users to monitor the performance of the photovoltaic system in real-time, from anywhere and at any time, using the GoodWe monitoring platform. This connectivity enables homeowners and technicians to receive real-time data and optimize system performance. Additionally, the inverter is compatible with RS485 (optional), offering greater flexibility in integration with other systems.

Quiet and efficient operation:
The GoodWe XS GW3000-XS inverter has been designed to operate silently, with a noise level of less than 42 dB, making it ideal for installation in residential areas without causing disturbances. It uses a natural convection cooling system, eliminating the need for active fans and reducing maintenance. This feature also prolongs the lifespan of the inverter, as there are no moving parts that can wear out over time.

Advanced protections:
The GoodWe XS inverter is equipped with a series of advanced safety features, including protection against overvoltage, overcurrent, short circuits, and reverse polarity on the DC side. These protections ensure that the system operates safely and reliably at all times. Additionally, it has anti-islanding protection, which automatically disconnects the system from the grid in case of electrical failures, ensuring the safety of both the home and the technicians working on the grid.

Highlighted technical specifications:

• Nominal output power: 3,000 W, with a maximum active power of 3,300 W, ensuring adequate performance for most residential applications.
• Nominal output voltage: 230 V, with a nominal frequency of 50/60 Hz.
• Maximum input current: 12.5 A, allowing for efficient handling of the energy generated by the solar panels.
• MPPT voltage range: 50 ~ 450 V, enabling the inverter to capture energy across a wide range of solar conditions.

Durability and adaptability:
The GoodWe XS GW3000-XS is designed to operate in a wide variety of environmental conditions, with an operating temperature range of -25°C to +60°C and a relative humidity of 0% to 100%, ensuring its durability even in extreme climates. Additionally, it supports a maximum operating altitude of 4000 meters, making it suitable for installation in various geographical locations.

The GoodWe XS GW3000-XS is a highly efficient, compact, and easy-to-install single-phase solar inverter, ideal for residential applications. Its ultra-lightweight design, input oversizing capability, and high energy efficiency make it an attractive option for homeowners looking to maximize their solar self-consumption and reduce costs. With advanced connectivity and integrated protection, this inverter ensures reliable and safe long-term performance.
