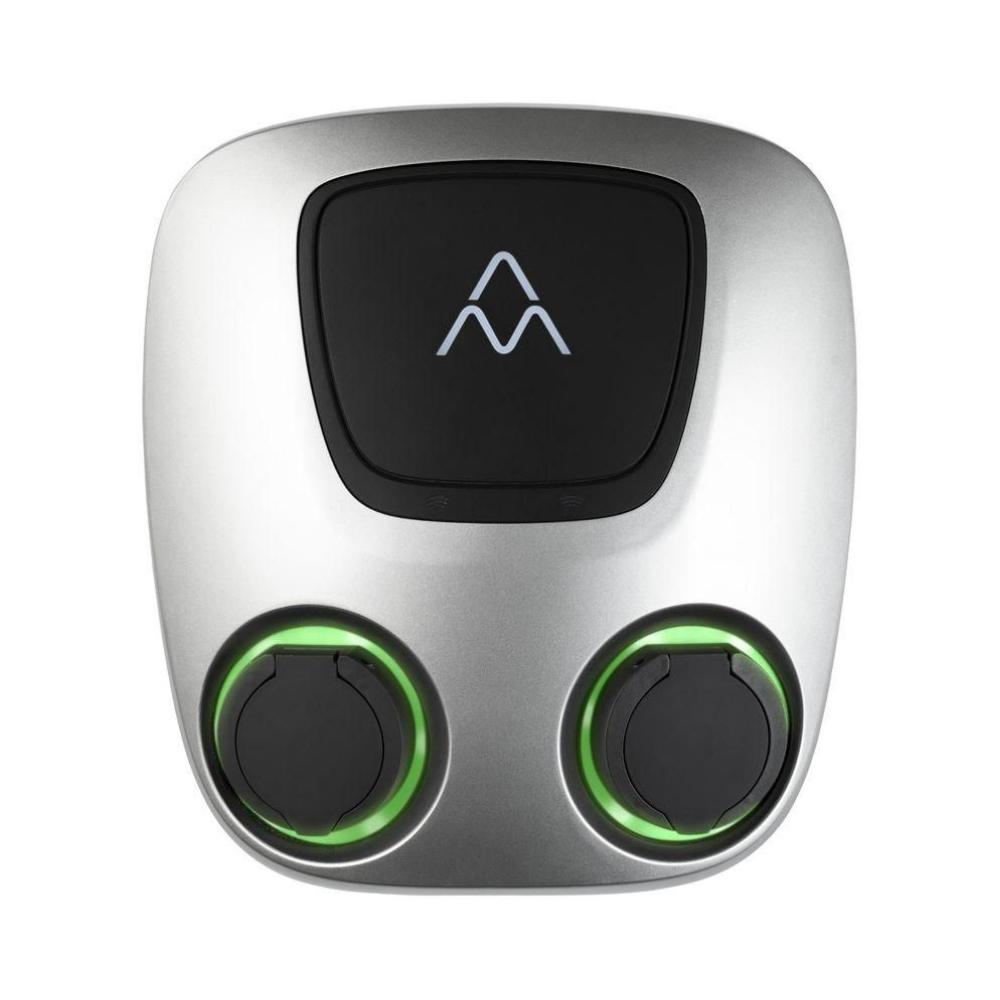

Double Electric Car Charger with WiFi 2 x 22 kW Charge Amps Aura Twin Socket

Charge Amps Aura Twin Socket 2 x 22 kW: The Smart Solution for Dual Electric Vehicle Charging

The Charge Amps Aura Twin Socket charger, reference 130909, is a high-performance dual charging station designed to offer maximum efficiency, connectivity, and design in semi-public or private environments. Capable of charging two electric vehicles simultaneously with up to 22 kW per socket, this model represents an ideal solution for installations in communities, corporate parking lots, commercial spaces, and residences with more than one electric vehicle.

Its recycled aluminum structure not only provides sustainability and durability but also an elegant design with a Scandinavian signature, developed by renowned industrial designer Joachim Nordwall (former chief designer at Koenigsegg). With a focus on functionality and aesthetics, Aura integrates seamlessly into any architectural environment, adding visual and technological value.

The charger is ready for full cloud integration via Charge Amps Cloud or any service compatible with OCPP 1.6J. From the app or web portal, it is possible to monitor the charging status, schedule times according to electricity prices, perform load balancing between sockets, and consult consumption history. OTA (over-the-air) software updates ensure the device is always up to date with new features and security enhancements.

Charge Amps Aura includes differential protections for each socket and three-phase energy measurement in accordance with the MID 2014/32/EU directive. WiFi connectivity comes standard. Additionally, it can be integrated with other solutions from the Charge Amps ecosystem, such as the Amp Guard dynamic balancing system, the Green Charging function for solar energy, or Beam charging cables.

Main Advantages:

• Two Type 2 sockets with simultaneous charging of up to 22 kW each
• Design in recycled aluminum, durable and aesthetic
• Remote management via WiFi
• Configurable load balancing between sockets
• Compatibility with OCPP 1.6J for third-party platforms
• Differential protection per socket (DC + Type A RCBO integrated)
• History and statistics available in the cloud
• Automatic OTA software and feature updates
• Integration with Green Charging and solar panels
• Ideal for communities, corporate parking, and homes with more than one EV

Recommended Applications:

• Homeowner communities with multiple electric vehicle users
• Companies with electric fleets or employee parking
• Public or semi-public parking where shared charging is required
• Homes with two electric vehicles needing efficient charging

Technical Specifications:

• Manufacturer reference: 130909
• Power: up to 2 x 22 kW simultaneously
• Charging current: from 6 to 32 A, 1 or 3 phases per socket
• Voltage: 230/400 V
• Charging standard: Mode 3
• Identification: RFID
• Connectivity: WiFi standard
• Communication protocol: OCPP 1.6J
• Differential protection: Type A RCBO with integrated DC protection
• Energy measurement: voltage, current, and power (three-phase) in accordance with MID 2014/32/EU
• Protection rating: IP55
• Impact resistance: IK10
• Connector type: 2 × Type 2
• Operating temperature: -30 °C to +45 °C
• Dimensions: 367 × 159 × 405 mm
• Weight: 10 kg

Charge Amps Aura Twin Socket combines Swedish design, energy efficiency, total connectivity, and sustainability, offering a robust and scalable solution for electric vehicle charging in all types of modern installations.
