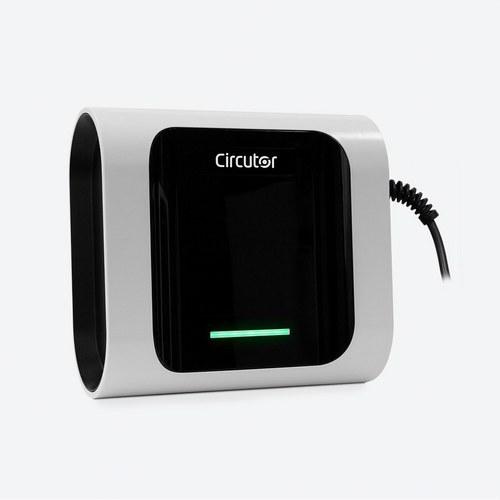

Single-phase 7.4kW Electric Car Charger Type 2 Circutor eNext M-C2

The Circutor eNext M-C2 electric car charger (code V27030) is an advanced and efficient solution for domestic charging of electric vehicles. With an output power of 7.4 kW and an integrated Type 2 cable, this charger is ideal for installation in private garages or covered car parks. Its compact and modern design, combined with its management capability through an intuitive app, makes it an attractive option both for its functionality and aesthetics.

Efficient and fast charging in mode 3: The Circutor eNext M-C2 allows for single-phase charging at 230 V with a maximum current of 32 A, offering a power of up to 7.4 kW, ensuring fast and efficient charging for electric and plug-in vehicles. The mode 3 charging, in compliance with IEC 61851-1 standards, guarantees a secure and stable connection between the vehicle and the charger, providing a reliable charging experience at all times.

Remote management and monitoring with app: This model from the eNext range includes wireless connectivity via short-range WPAN technology, allowing the charger to be managed through an intuitive app. With the application, users can schedule charging, adjust it to the most economical electricity tariffs, monitor the charging status in real time, and update the device firmware remotely. This provides total control over the charging process, optimising energy consumption and reducing costs.

Compatibility with CirBEON for power management: The eNext M-C2 is compatible with the CirBEON system, which automatically regulates the available power in the installation, adapting it to the household's needs and preventing overloads. This functionality makes it an ideal option for domestic environments, as it optimises the power supplied to the vehicle based on household consumption.

Robust design and easy installation: The Circutor eNext M-C2 features a self-extinguishing ABS/PC casing and a protection rating of IP54, allowing it to withstand moisture, dust, and external impacts (IK10). Its installation is simple thanks to wall mounting with three fixing points, and its compact design with dimensions of 335 x 315 x 179.7 mm makes it ideal for confined spaces. Furthermore, its RGB LED indicator provides clear visual information on the charging status.

Technical specifications:

• Nominal voltage: 230 V~ (± 10%).
• Maximum current: 32 A.
• Output power: 7.4 kW.
• Charging mode: Mode 3 (IEC 61851-1).
• Connector: Type 2 cable.
• Protection rating: IP54 / IK10.
• Wireless communication: WPAN.
• Dimensions: 335 x 315 x 179.7 mm.
• Weight: 4 kg.

Additional options: This charger includes protection options such as 6 mA DC leakage detection, which requires the installation of a RCBO Type A circuit breaker with differential protection and overvoltage protection, ensuring an even safer and more efficient installation.

Applications: The Circutor eNext M-C2 is designed for use in private garages and covered car parks, and is compatible with a wide range of electric and plug-in vehicles using Type 2 connectors. It is ideal for users seeking a simple, fast, and controllable charging solution from a mobile app.

The single-phase Circutor eNext M-C2 charger offers a complete solution for the efficient charging of electric vehicles, combining power, compact design, and smart management through an app, making domestic charging more accessible and economical.
