Capacitor Banks: Energy Improvement and Efficiency

Capacitor Banks: What They Are, What They Are Used For, and How They Improve Electrical Installations

4 minutes of reading

By Mariona Griera

April 3, 2025

Capacitor banks are essential for improving energy efficiency in industrial and commercial installations. They reduce reactive energy, improve power factor, and prevent penalties on the electricity bill. The Optim 3 P&P range from Circutor offers easy-to-install and highly effective solutions.

In industrial and commercial installations, it is common to find large motors, transformers, and other equipment that generate reactive energy. This type of energy, although necessary for the operation of devices with coils (motors, fluorescent lamps, etc.), represents an additional non-productive consumption that overloads the network. The result is often a low power factor, energy losses, voltage drops, and even penalties on the electricity bill from the supplying company. To solve this problem, capacitor banks have become a key tool. Below, we explain what they are, what they are used for, and how the Optim 3 P&P range from Circutor can help you improve the efficiency of your electrical installations.

What is a capacitor bank?

A capacitor bank is an electrical device composed of a set of capacitors, usually controlled by an automatic regulator, whose main objective is to compensate for reactive energy in an installation. In other words, it is responsible for reducing the reactive energy generated by inductive loads, improving the power factor and energy efficiency.

This system is installed in parallel to the main panel of the electrical installation and is composed of:

Capacitors: power capacitors that provide capacitive reactive energy to counteract the inductive.
Contactors: connect or disconnect the capacitors based on demand.
Power factor regulator: analyzes real-time electrical consumption and acts on the contactors to maintain the optimal power factor.

Thanks to this automatic regulation, the battery only injects the necessary reactive energy, dynamically adapting to the load conditions.

What is a capacitor bank used for?

Capacitor banks have multiple applications in environments where there is a high presence of inductive loads: industries, businesses, buildings with elevators, climate control centers, or installations with machinery.

Among its most important benefits are:

Avoid penalties on the electricity bill: many tariffs apply surcharges for excessive reactive energy consumption. A capacitor bank prevents exceeding the allowed threshold, eliminating those additional costs.
Reduce the load on cables and transformers: by decreasing the total current flowing through the network, resources are freed up and the installation's capacity is optimized.
Improve the quality of supply: it helps maintain stable voltage and reduces fluctuations that could affect the performance of sensitive equipment.
Extend the lifespan of the installation: it prevents overloads and unnecessary heating in cables, motors, and transformers.
Comply with electrical regulations: in professional or industrial installations, it is mandatory to maintain a high power factor. Capacitor banks allow achieving this goal reliably.

In summary, they are an effective solution to improve energy efficiency, reduce costs, and avoid legal or technical problems in any professional environment.

Economic savings and regulations

One of the most compelling reasons to install a capacitor bank is the direct savings on the electricity bill. In Spain, electric companies penalize the excess of reactive energy when it exceeds 33% of the active energy consumption in a given period. These penalties are applied automatically and can represent a significant expense month after month.

With a correctly sized battery, this percentage is reduced or eliminated, allowing savings from the first month. Additionally, the return on investment usually occurs in a short period, especially in installations with motors, old lighting, or heavy machinery.

The regulations also reinforce this need. If an installation systematically exceeds the permitted limits of reactive energy, the distributor may require improvements or, as a last resort, suspend the supply. Having a capacitor bank is not only advisable but in many cases essential to comply with the law.

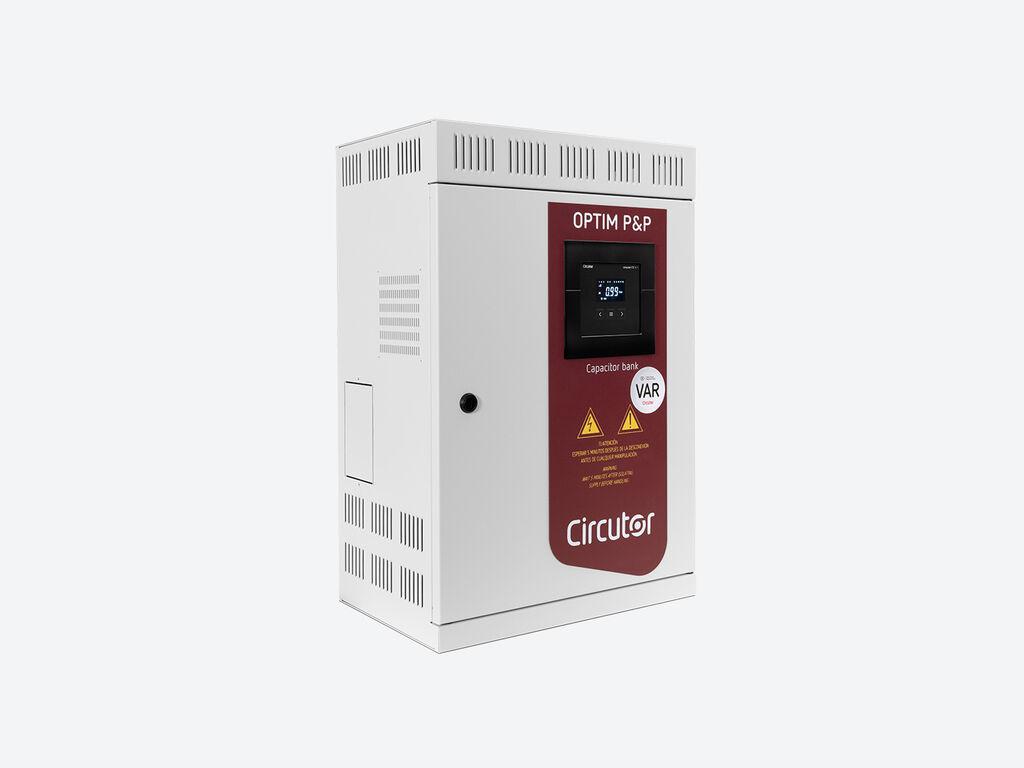

The range Circutor Optim 3 P&P: ready-to-install efficiency

At GroupSumi, we trust Circutor as one of the leading manufacturers in energy efficiency solutions. Their Optim 3 P&P range of automatic capacitor banks offers a robust, easy-to-install, and highly effective option for industrial and commercial environments.

Main advantages:

Plug & Play Installation: this range is designed for quick and easy startup, ideal for installers seeking immediate and reliable solutions.
Intelligent Automatic Regulation: integrates advanced digital regulators that continuously adjust the power factor. Some models even offer Wi-Fi connectivity for remote monitoring.
Compact Design: the wall-mounted format facilitates integration into existing panels or small spaces, without the need for major works or renovations.
High Durability: the internal capacitors are manufactured with long-life CLZ technology, and the contactors are prepared to withstand thousands of operations with total reliability.
Integrated Protection: all models feature circuit breaker protection, ensuring safety and minimizing electrical risks.

Ideal applications:

Industrial warehouses with variable machinery
Mechanical and production workshops
Stores with intense lighting or centralized air conditioning
Residential communities with elevators or pumps
Tertiary buildings and offices

The Optim 3 P&P range is available in different power configurations, allowing it to adapt to the needs of each project. In all cases, an immediate improvement in the power factor, a reduction in penalties, and an optimization of the installation's performance are guaranteed.

Installation and maintenance

The installation of a capacitor bank must be carried out by a qualified professional, following the manufacturer's recommendations and current regulations. Ideally, it should be located near the main panel, in a ventilated area with easy access.

Maintenance is minimal. It is recommended to perform periodic inspections (every 6 or 12 months) to check the condition of the capacitors, the proper ventilation of the cabinet, and the operation of the regulator. With these simple care measures, the battery can operate optimally for many years.

Conclusion: efficiency and savings within reach of your installation

Capacitor banks are an essential solution for professionals looking to reduce energy costs and improve the electrical performance of their installations. Their automatic operation, the savings they generate, and the improvement in electrical quality make them a smart investment for all types of projects.

At GroupSumi we offer you the Circutor Optim 3 P&P, a versatile, modern, and reliable solution to compensate reactive energy without complications. If you are an installer, renovator, or maintenance manager, incorporating this technology will allow you to take a quality leap in your next electrical project.

Improves performance. Eliminates penalties. Increases efficiency. Trust in Circutor and GroupSumi.
